Name: Cinela ZEPHYX Suspension Sets
Brand: Cinela
SKU: CINXSET
Availability: InStock

Cinela ZEPHYX Suspension Sets

Cinela ZEPHYX suspension sets, the X-SET blocks, hold a microphone or a stereo pair inside the suspended cage of a ZEPHYX windshield, each set made for one microphone or configuration.

Each set is a block derived from Cinela’s OSIX suspension, fixed inside the ZEPHYX cage by a single knob. Changing the set moves one ZEPHYX from one microphone setup to another. Taken out of the cage, an X-SET can also stand in for an OSIX suspension for most of the microphones the ZEPHYX takes, up to 15 cm long.

Mono and Stereo Sets

The X-SET-1 sets up a ZEPHYX for Neumann KM 184/185 and KMA microphones, and the X-SET-2 sets one up for a Schoeps CMC 6. Four sets carry MS pairs: Schoeps CMC 6, CMC 1 L, or CMC 1 U, or Neumann KMA. Others take a Schoeps MiniCMIT or DPA 4017C with a CCM 8, a Schoeps CMXY for XY, or a double MS set of a CCM 8 with two CCM 4.

Features

Suspension blocks for the ZEPHYX windshield
Derived from the OSIX suspension
Fixed in the cage by a single knob
Sets for mono, MS, XY, and double MS
Stand in for an OSIX suspension, for microphones up to 15 cm

Available Options

Microphones	MPN	Setup	Compatible Microphones

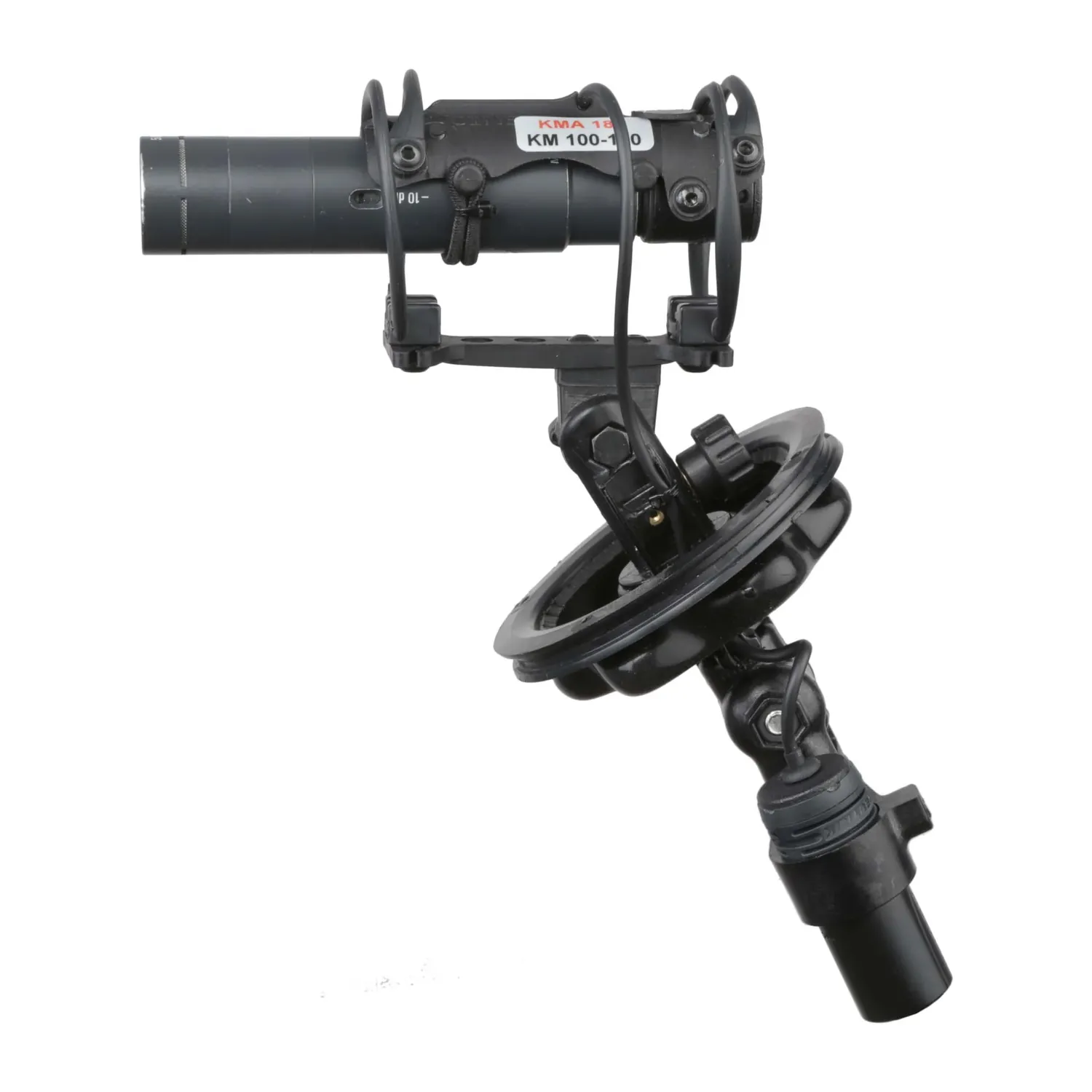

Neumann KM 184/185	X-SET-1	Mono	Neumann KM 184/185, KM 140 (older), KMA with KK 184/185

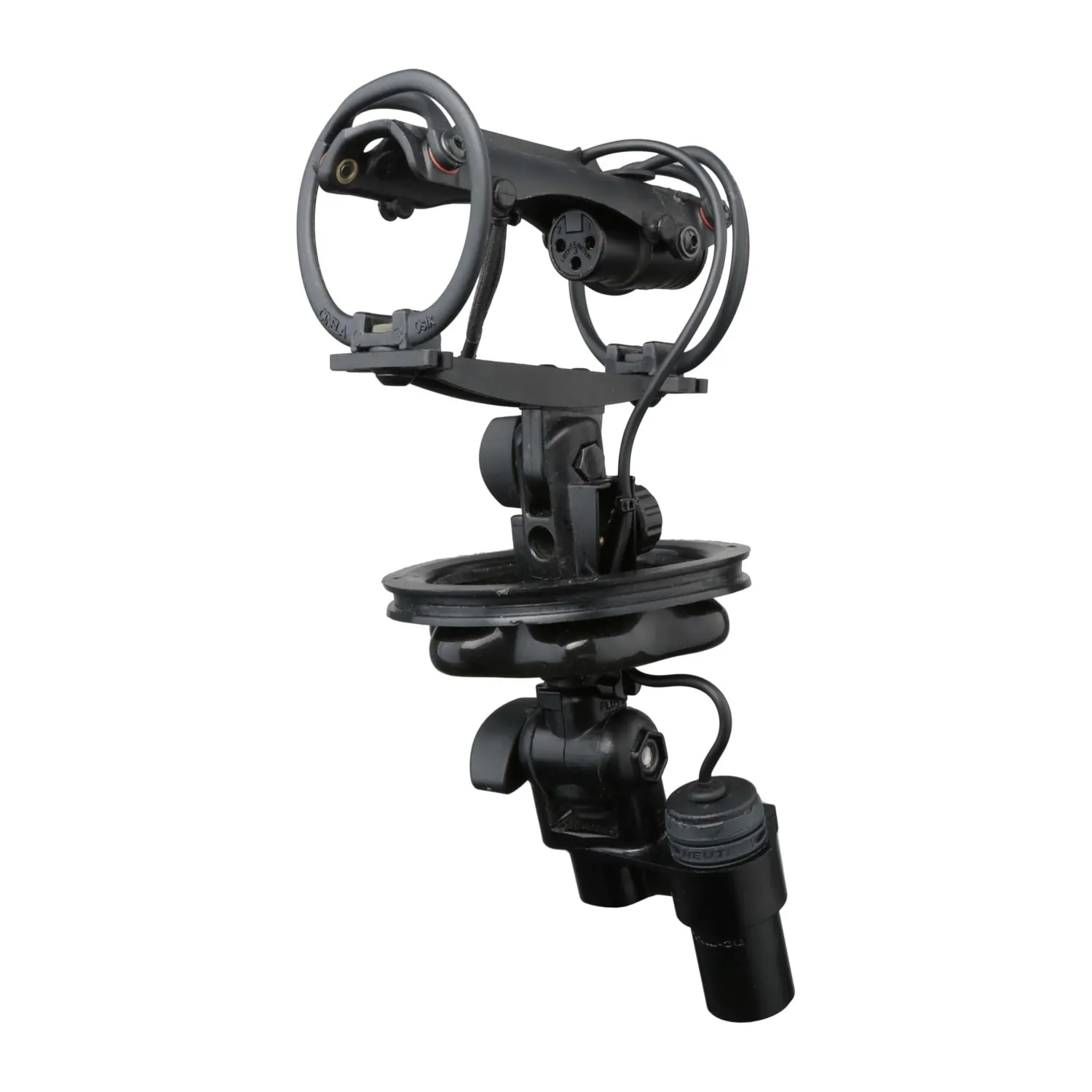

Schoeps CMC 6	X-SET-2	Mono	Schoeps CMC 6 with MK 4 or MK 41

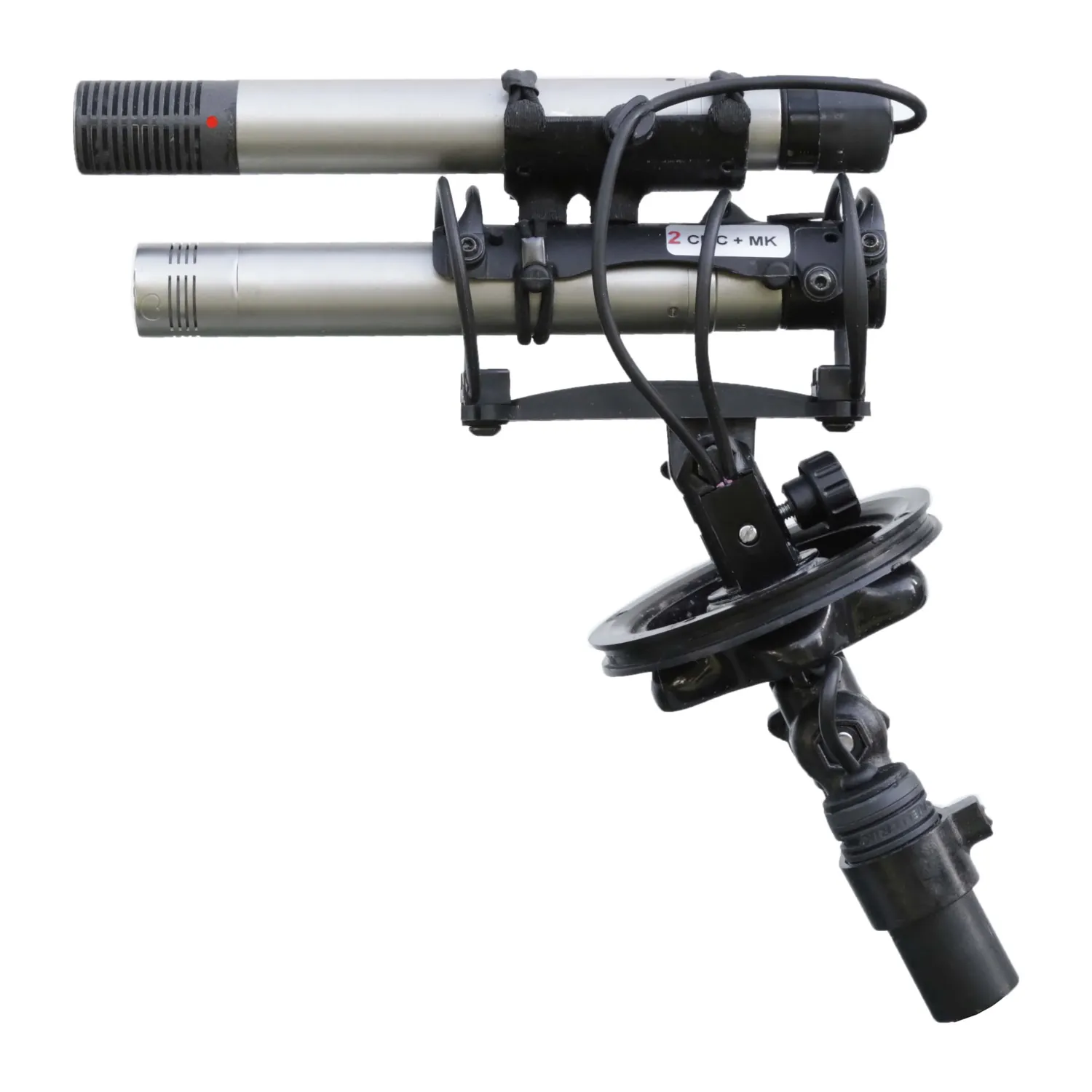

MS Pair of Schoeps CMC 6	X-SET-CMC6-MS	MS	Schoeps CMC 6 with MK 4 or MK 41, and CMC 6 with MK 8

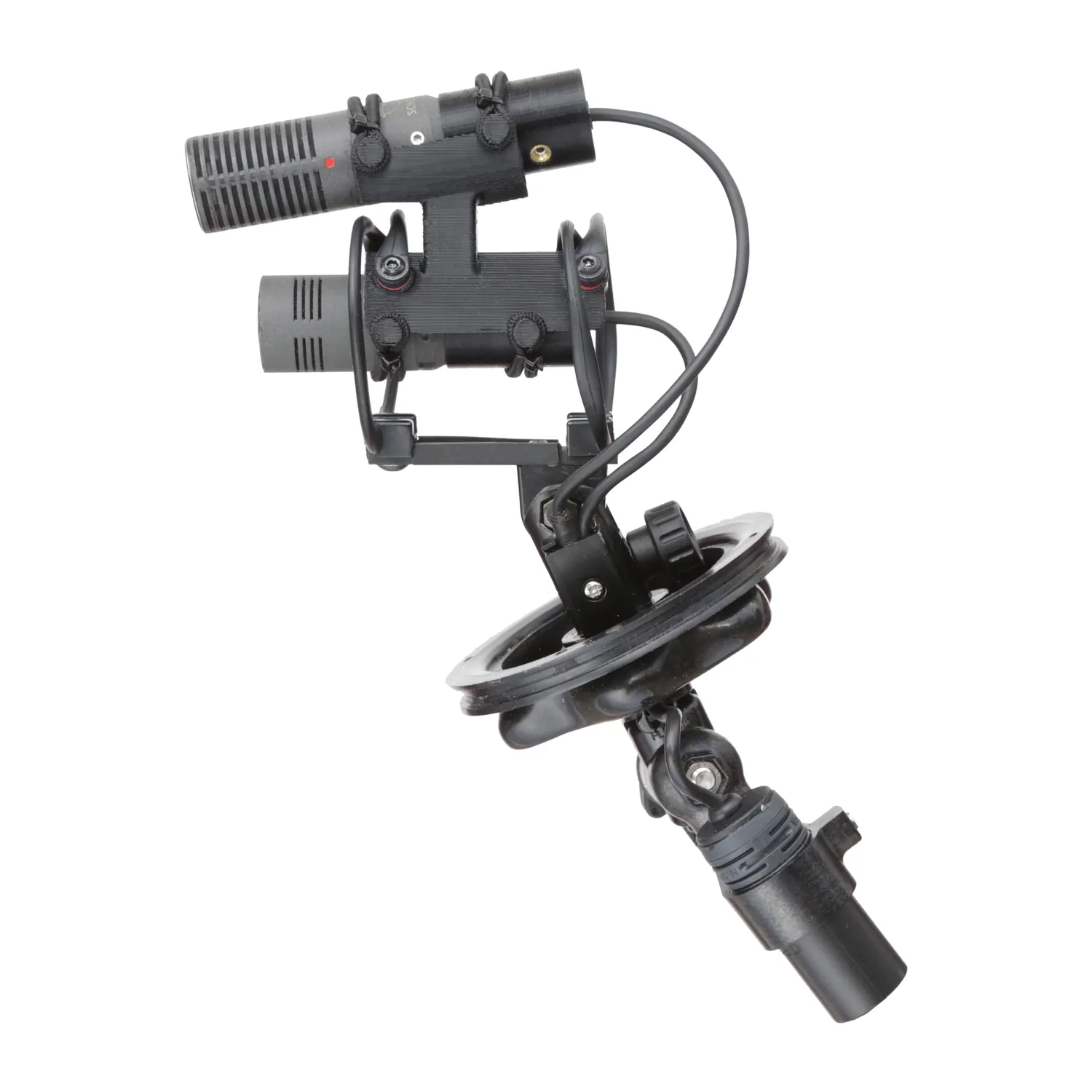

MS Pair of Schoeps CMC 1 L	X-SET-CMC 1L-MS	MS	Schoeps CMC 1 L (Lemo) with MK 4, MK 41, or MK 8, with or without CUT60; CCM 8 and CCM 4 V

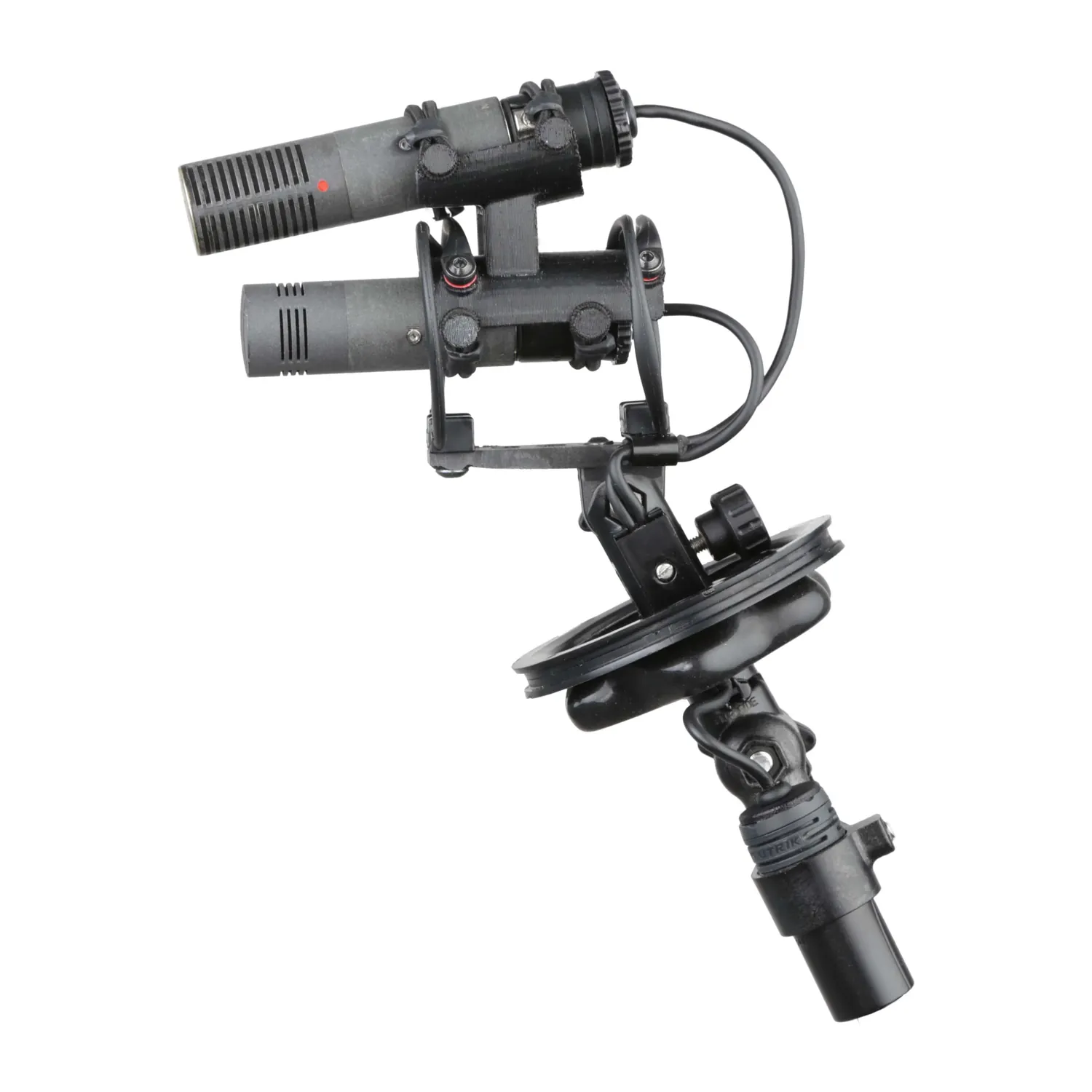

MS Pair of Schoeps CMC 1 U	X-SET-CMC 1U-MS	MS	Schoeps CMC 1 U (XLR) with MK 8, with or without CUT60

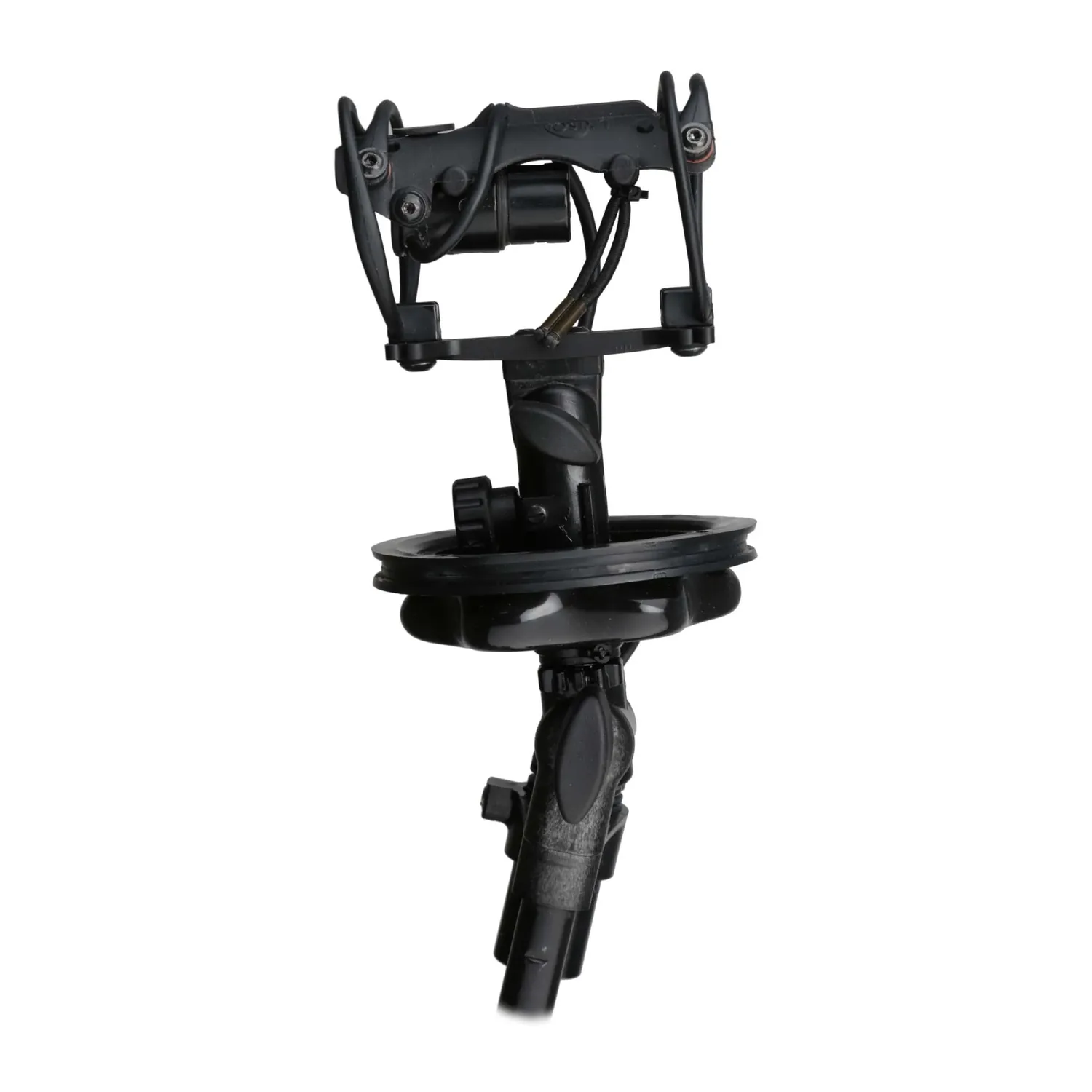

Schoeps CMXY	X-SET-CMXY	XY	Schoeps CMXY
Schoeps MiniCMIT + CCM 8	X-SET-MiniCMIT-CCM8	MS	Schoeps MiniCMIT with CCM 8 or CMC 1 L with MK 8

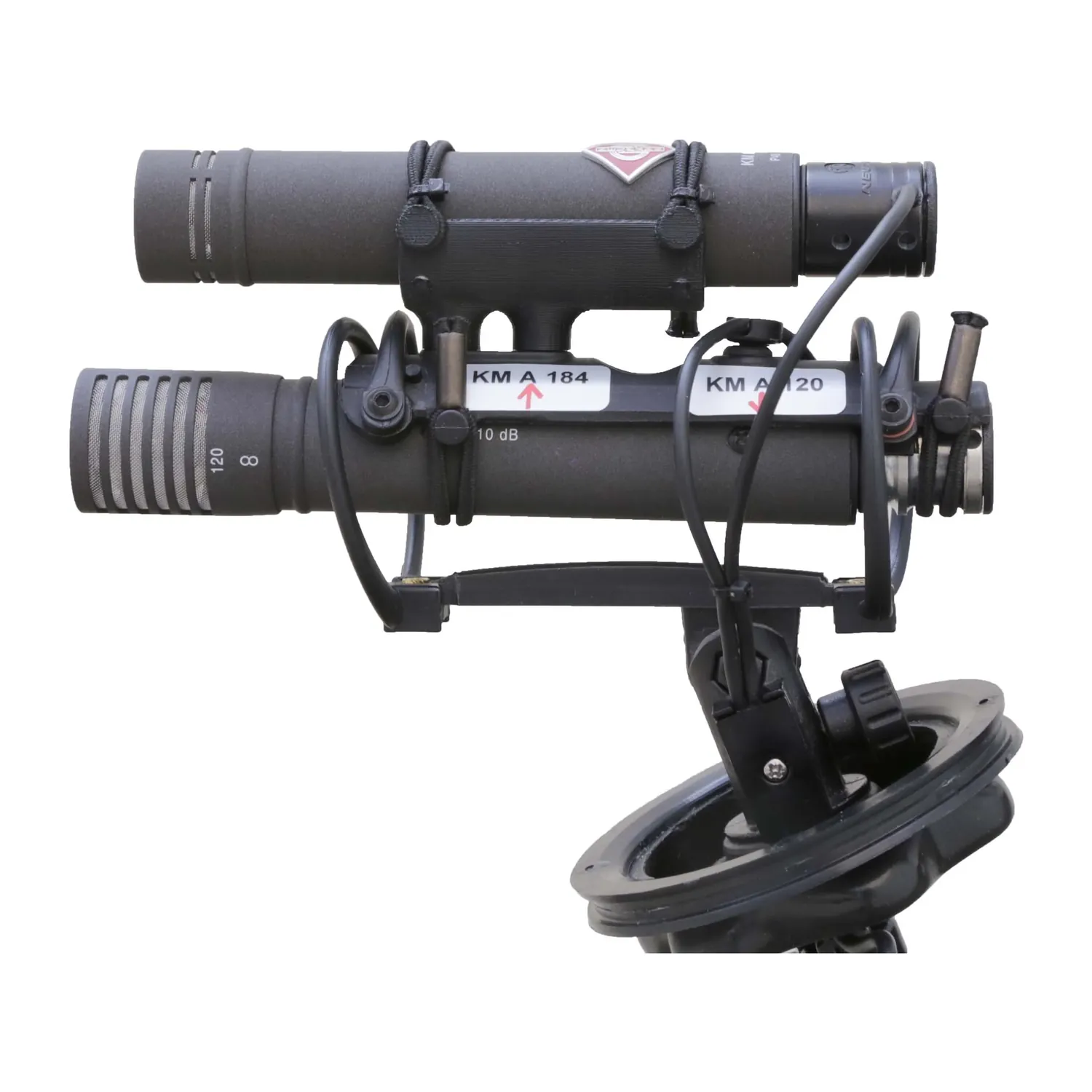

MS Pair of Neumann KMA	X-SET-KMA-MS	MS	Neumann KMA with KK 184/185 and KMA with KK 120

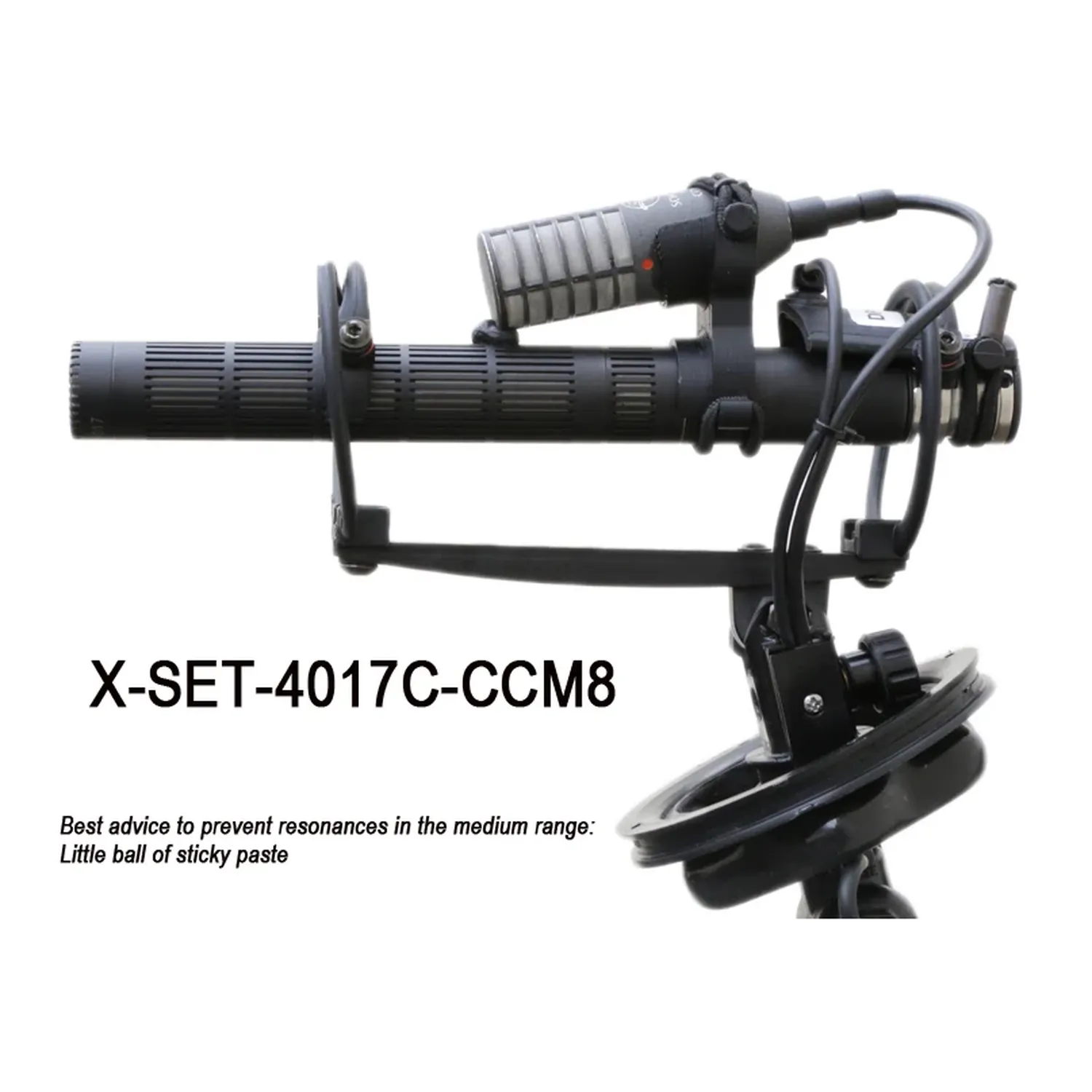

DPA 4017C + Schoeps CCM 8	X-SET-4017C-CCM8	MS	DPA 4017C with Schoeps CCM 8 or CMC 1 L with MK 8
Double MS Schoeps CCM 8 + Two CCM 4	X-SET-DMS-CCM	Double MS	Schoeps CCM 8 with two CCM 4 V

Specifications

Fits	Cinela ZEPHYX windshields
Mounting	Fixed in the cage by a single knob
Microphone Length	Up to 15 cm
Latest Specifications	Specifications are subject to change without prior notice. For current information, visit www.cinela.fr.
