Cinela PIANISSIMO Cables
- MS and double MS output cables with Binder sockets
- Microphone cables from XLR, TA3, Lemo, and MZL
- For PIANISSIMO stereo windshields
From $72.60 USD
Cinela PIANISSIMO Cables
Cinela PIANISSIMO cables wire a PIANISSIMO windshield for MS and double MS work, from the output cables with their internal Binder sockets to the short cables that join each microphone to a socket.
An MS PIANISSIMO has a 5-pin male XLR output, and a double MS one a 7-pin male XLR, each with Binder sockets inside the windshield. The microphones usually connect to those sockets through separate cables suited to their connectors, lengths, and routing, so a change of microphone means a change of cable rather than a rewire. The XLR5F to 2 Binder cable is for an XY pair or a single-body MS microphone.
Wiring
On the 3-pin output, pin 1 is ground and pins 2 and 3 carry the M signal. The 5-pin output adds the S signal on pins 4 and 5, and the 7-pin output adds a rear (R) signal on pins 6 and 7. For mono use of an MS or double MS windshield, channel 1 (M) comes through a splitter between the windshield and the recorder.
Features
- MS output cables with a 5-pin male XLR
- Double MS output cables with a 7-pin male XLR
- Internal Binder sockets for detachable microphone cables
- Microphone cables from XLR3F, TA3F, Lemo, and Sennheiser MZL 8003 to Binder
- XLR5F to two Binder for XY and single-body MS
Available Options
| Cable | MPN | What It Connects |
|---|---|---|

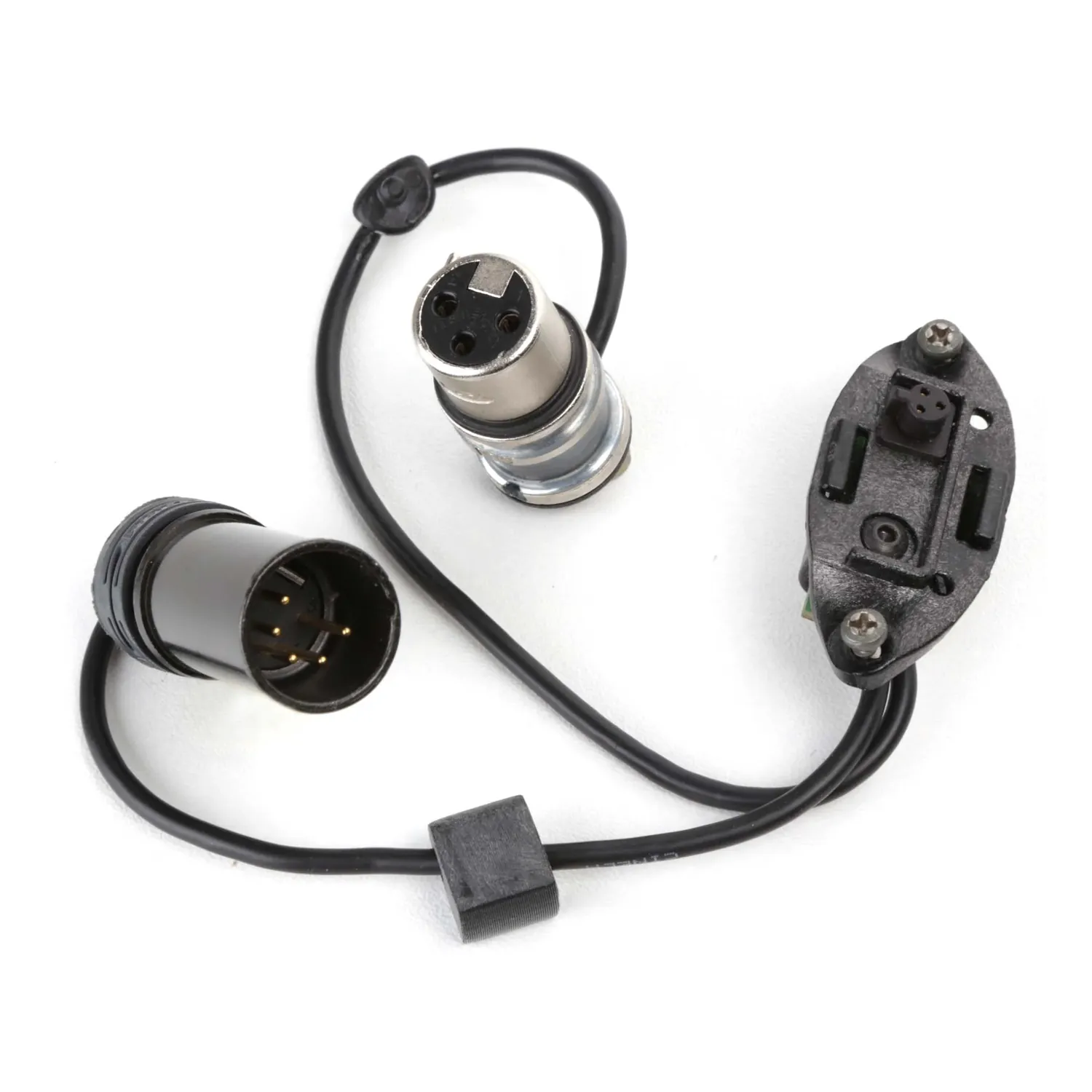

| MS Output XLR5M + XLR3F + 1 Binder | PIANI-CAB-2-SB | MS output: 5-pin male XLR, with a 3-pin female XLR and one Binder socket inside |

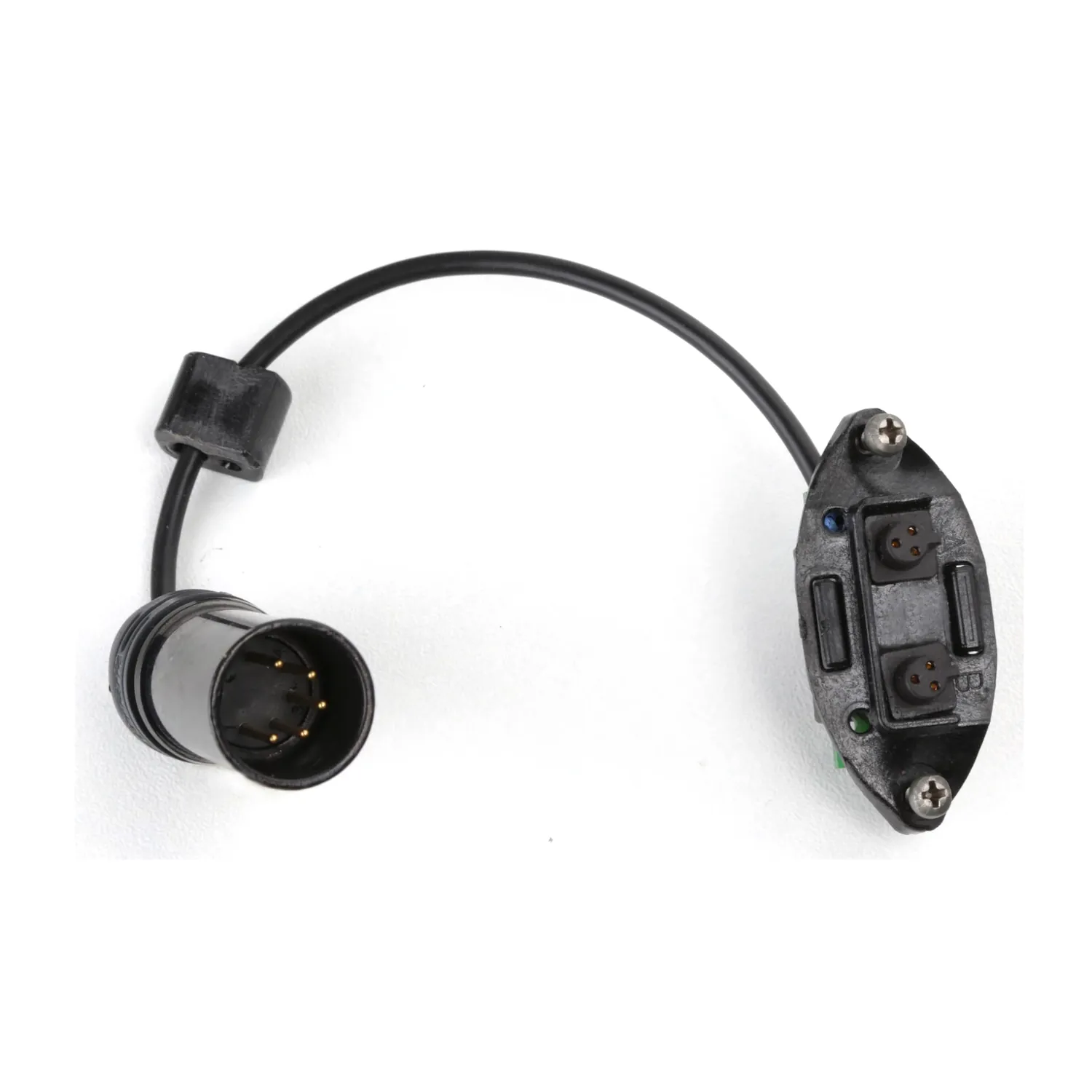

| MS Output XLR5M + 2 Binder | PIANI-CAB-2-DB | MS output: 5-pin male XLR, with two Binder sockets inside |

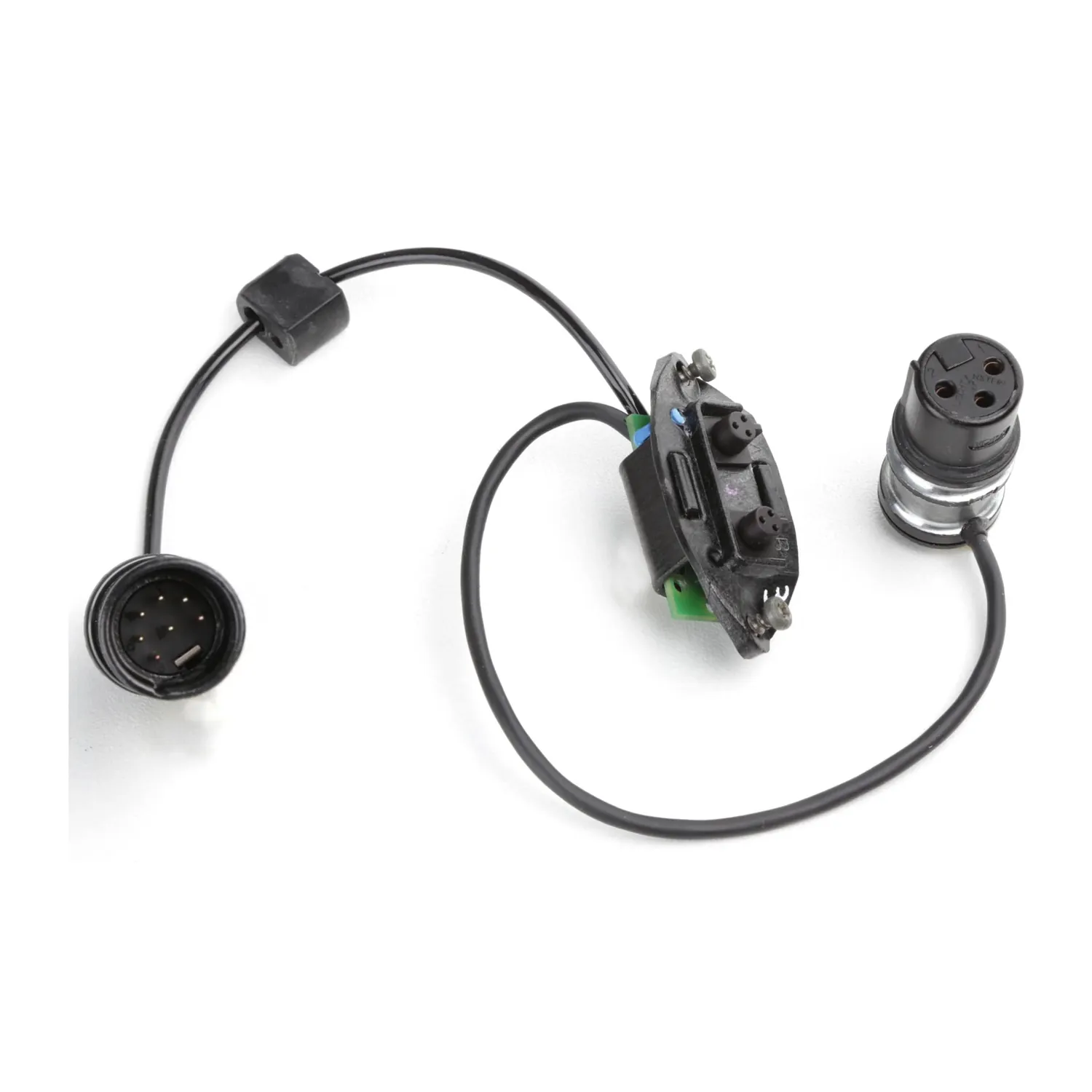

| DMS Output XLR7M + XLR3F + 2 Binder | PIANI-CAB-3-S | Double MS output: 7-pin male XLR, with a 3-pin female XLR and two Binder sockets inside |

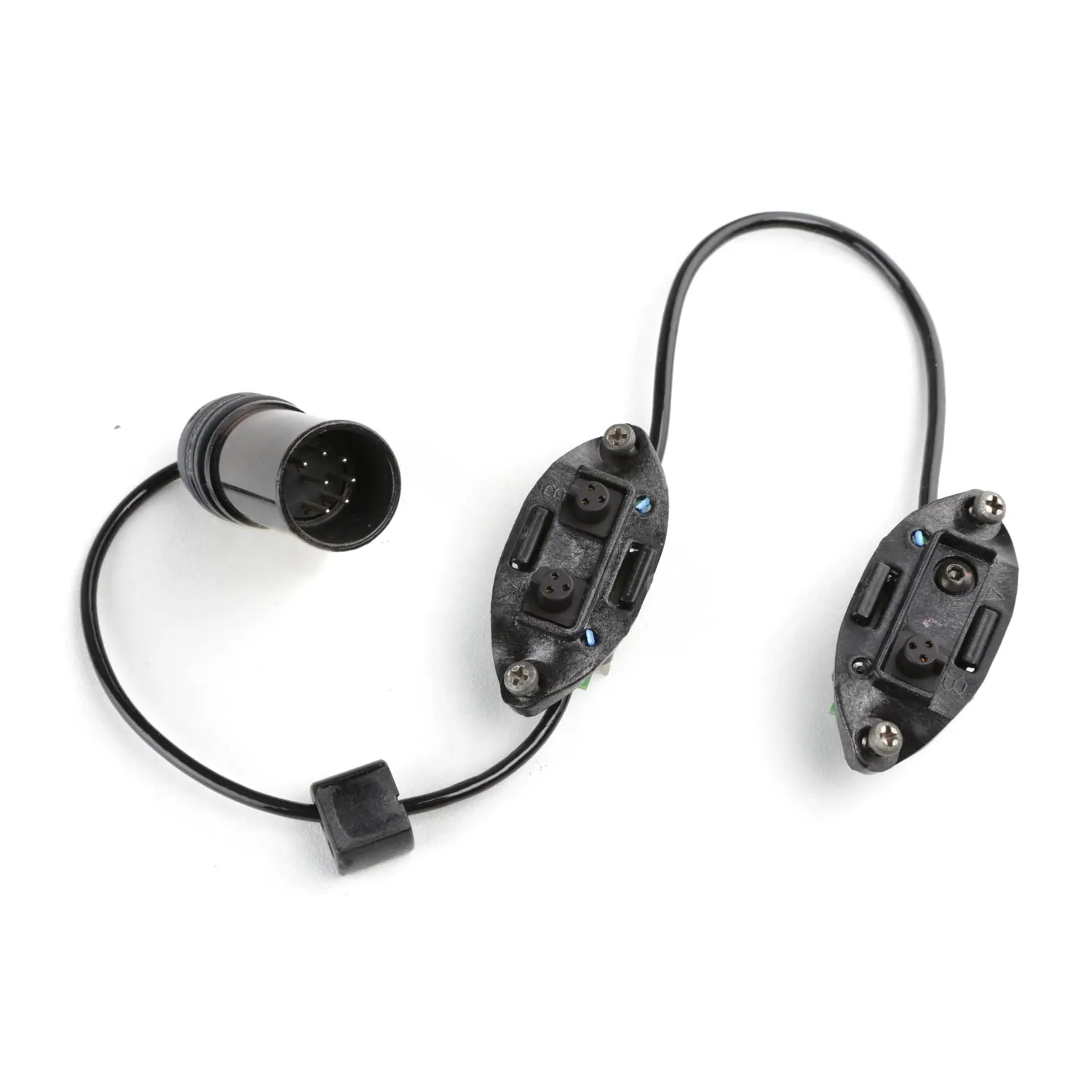

| DMS Output XLR7M + 3 Binder | PIANI-CAB-3-D | Double MS output: 7-pin male XLR, with three Binder sockets inside |
| XLR5F to 2 Binder | XLR5-2xBIND | 5-pin female XLR to two 3-pin Binder plugs, for XY or a single-body MS microphone |
| XLR3F to Binder | PIANI-XLR3F-BIND | 3-pin female XLR to a 3-pin Binder plug |
| Lemo (CCM) to Binder | PIANI-LEMO-BIND | Lemo connector for a Schoeps CCM to a 3-pin Binder plug |
| TA3F to Binder | PIANI-TA3F-BIND | 3-pin female TA3 to a 3-pin Binder plug |
| Sennheiser MZL 8003 to Binder | PIANI-MZL8003-BIND | Sennheiser MZL 8003 to a Binder plug |
Specifications
| Fits | Cinela PIANISSIMO MS and double MS windshields |
|---|---|
| MS Output | 5-pin male XLR: pin 1 ground, 2 and 3 M, 4 and 5 S |
| Double MS Output | 7-pin male XLR: pin 1 ground, 2 and 3 M, 4 and 5 S, 6 and 7 R |
| Internal Connection | 3-pin Binder |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit www.cinela.fr. |
