Cardellini 2R 2-Inch Right Angle Clamp
- Center jaw clamp with a right angle baby pin
- Pin locks at eight positions, 45 degrees apart
- Jaws take 2 to 2-1/2 inches
$128.62 USD
Cardellini 2R 2-Inch Right Angle Clamp

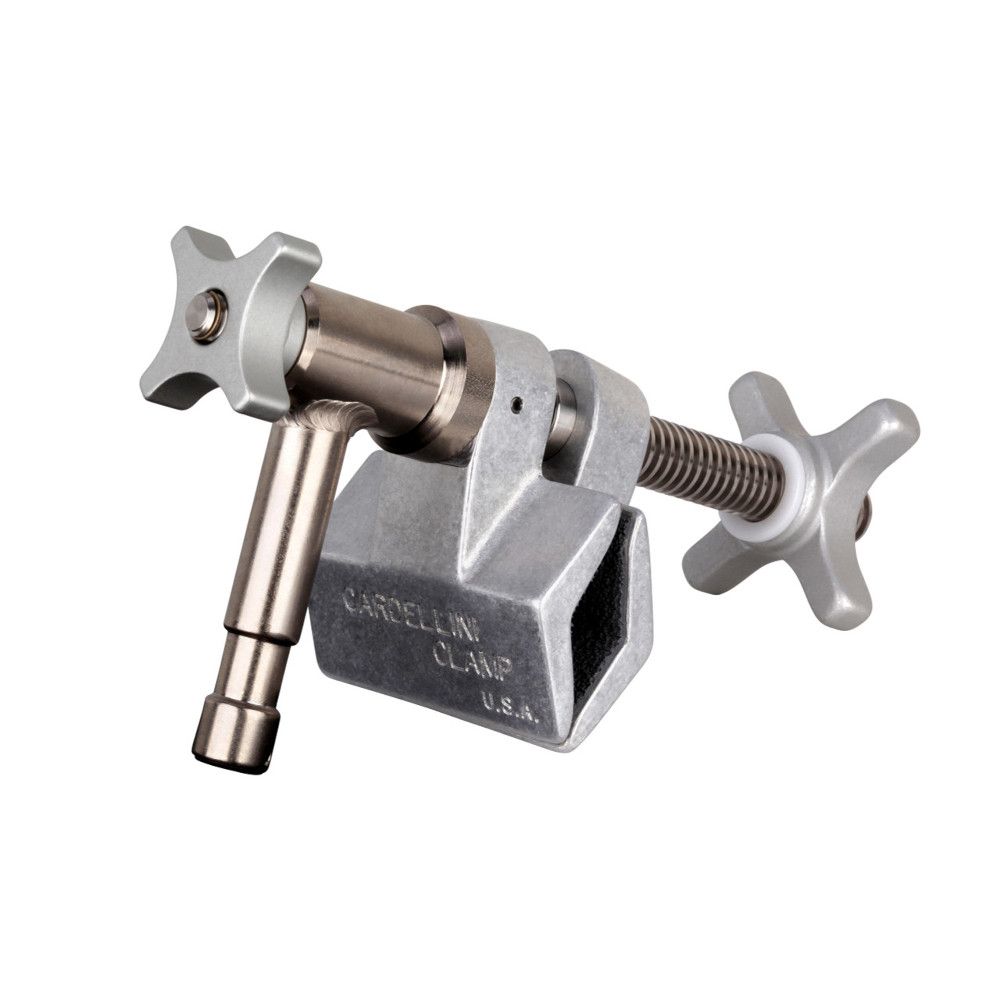

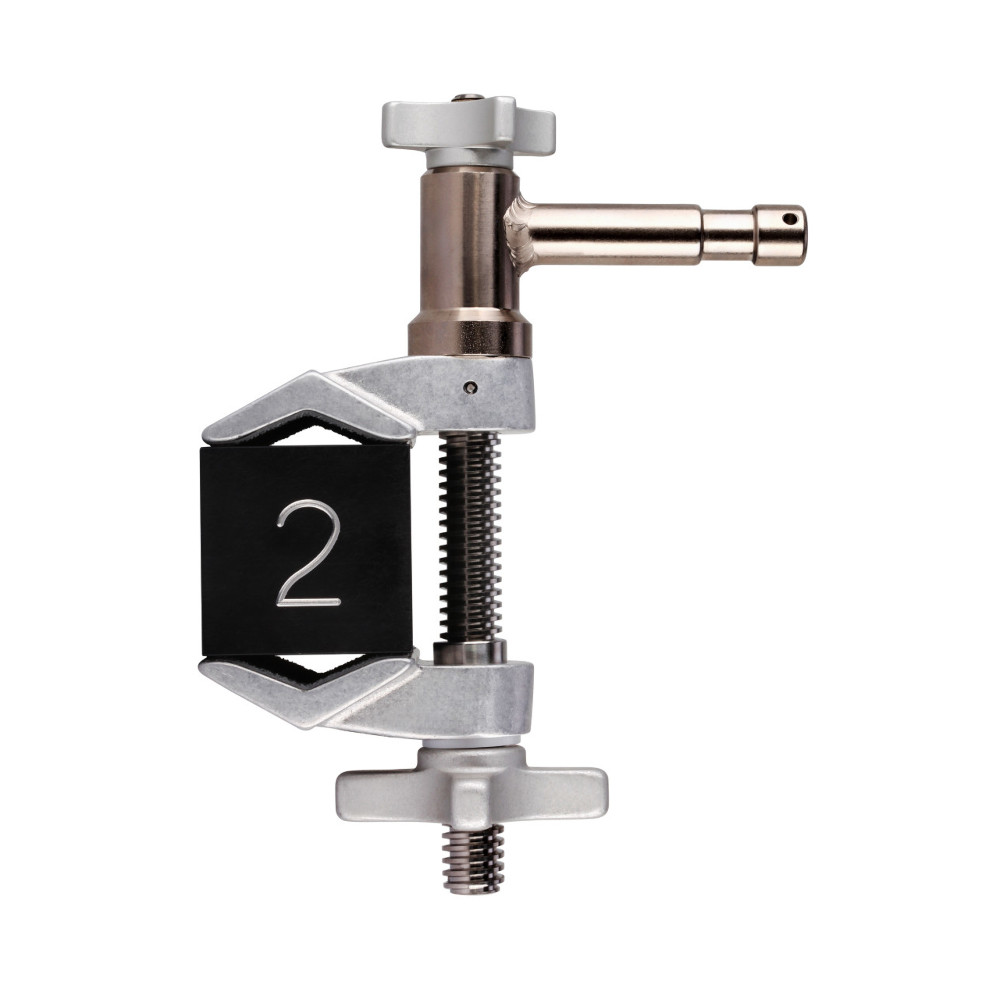

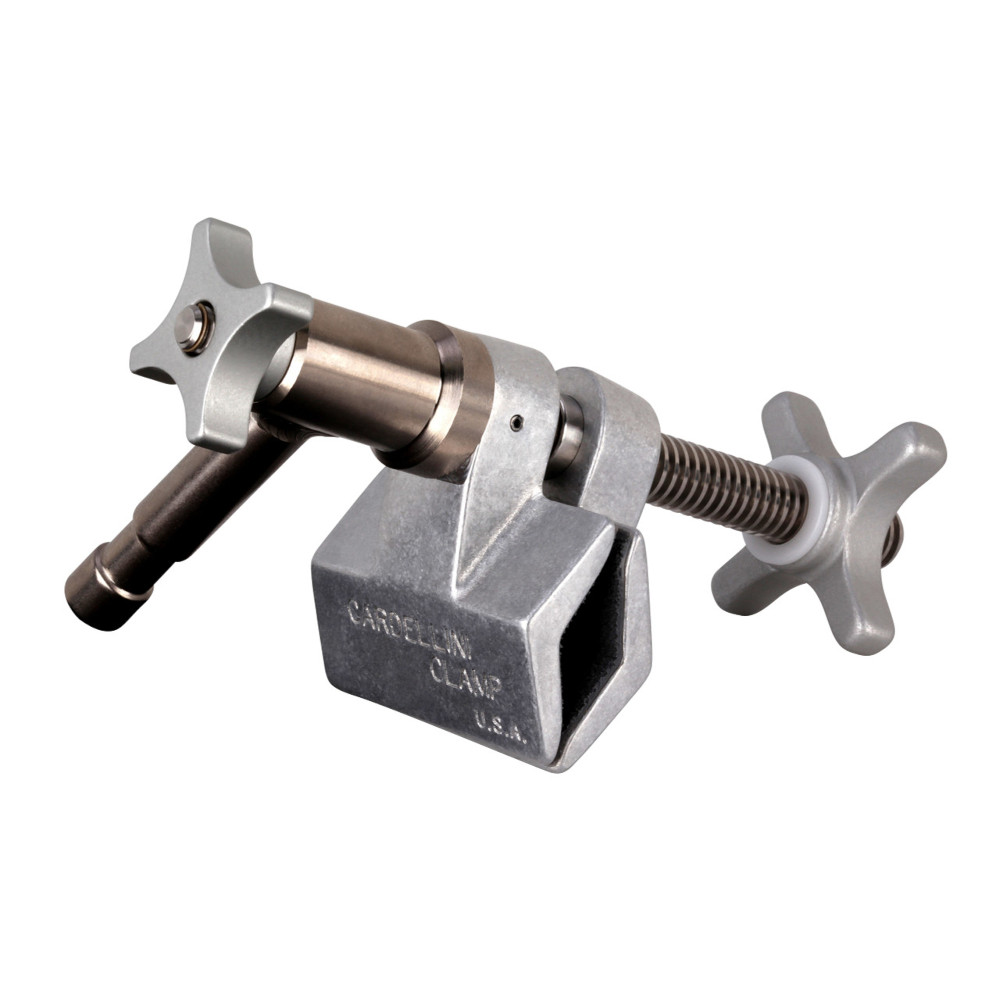

The Cardellini 2R sets a baby pin at a right angle to the main shaft of a 2-inch center jaw clamp.
The pin rotates on the shaft and indexes and locks at eight positions, 45 degrees apart. The jaws are 3 inches wide and take 2 to 2-1/2 inches, on an 8-inch shaft.
Features
- Baby pin at 90 degrees to the shaft
- Pin locks at eight positions in 45-degree steps
- Center jaw design
- Jaws take 2 to 2-1/2 inches
- 3-inch jaw width and 8-inch shaft
About Cardellini
Cardellini makes their clamps in the USA, in center jaw and end jaw styles and in sizes from mini clamps to 6-inch clamps. Their patented two-angled jaw design holds a solid grip on just about any surface, and rubber pads inside the jaws prevent scratches. They also make replacement jaw pads, baby pins, and other clamp accessories.
Specifications
| Type | Center jaw clamp with right angle baby pin |
|---|---|
| Jaw Width | 3 inches |
| Jaw Capacity | 2 to 2-1/2 inches |
| Shaft Length | 8 inches |
| Clamp Depth | 4.25 inches |
| Mount | Baby pin at 90 degrees to the shaft, indexed and locking at 8 positions in 45-degree steps |
| Weight | 30 oz |
