Canare 4-pair Multichannel Star Quad Snake Cable

Canare L-4E3-4P

Clear
SKU: CAN L-4E3-4P Categories: , Tag:

Product Description

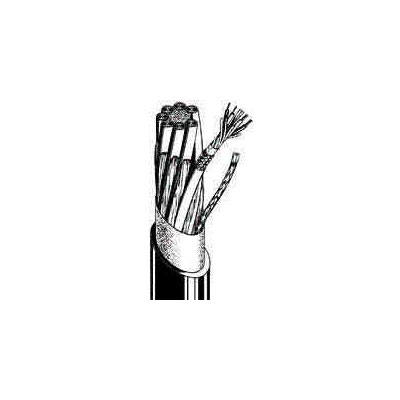

A 25 AWG multichannel Star Quad snake cable with raided shields. Each channel is completely isolated and consists of 4 conductors surrounded by an overall braided shield encased in a color coded striped PVC jacket. Fine conductor stranding for flexibility, facilitates roll up and easy payout. The four conductor design provides superior EMI and RFI noise rejection in problem areas on stage.

Excellent crosstalk characteristics allow vastly different signals (-120dB mic, +4dB line, +10dB code levels) to be used in adjacent channels.

Note: All Canare DT12 Snake assemblies are built using their road-worthy and flexible L-4E3-12P cable.

Applications:

  • Multiple Audio Lines
  • Portable Applications
  • Audio Rack Wiring
  • PA Systems

Key Features:

  • Braided Copper Shield
  • Flexible in Extreme Cold Weather
  • Cross Linked PE Insulation
  • Rejects EMI and RFI
  • Multiple Channels
