BeachTek DXA-RED Low-Noise Preamplifier for RED Cameras
- Two XLR inputs with phantom power for RED DSMC2 cameras
- Main and aux 3.5 mm outputs
- 2-pin LEMO or Micro USB power
$538.00 USD
BeachTek DXA-RED Low-Noise Preamplifier for RED Cameras

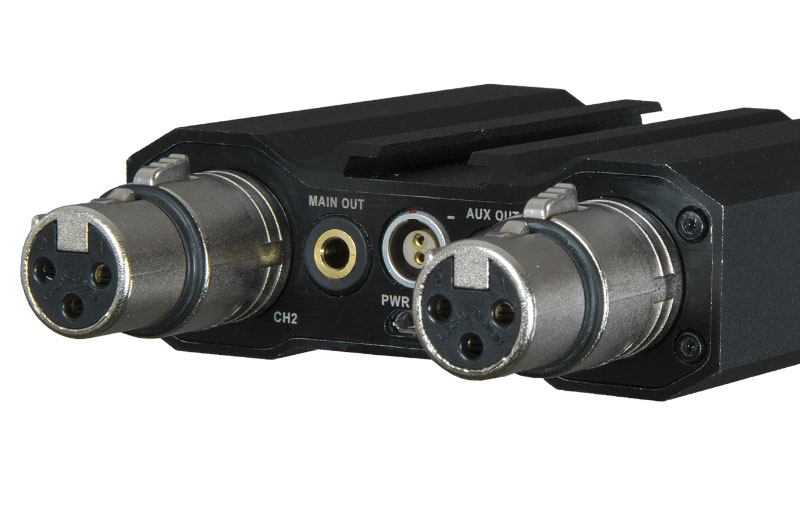

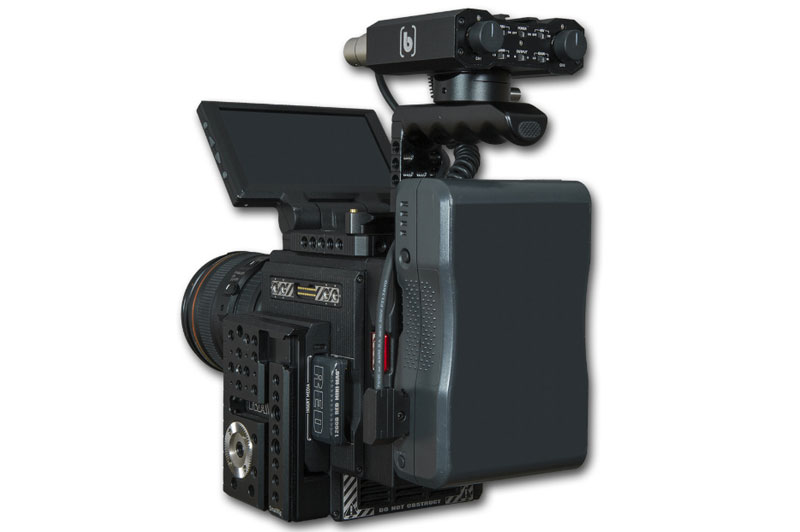

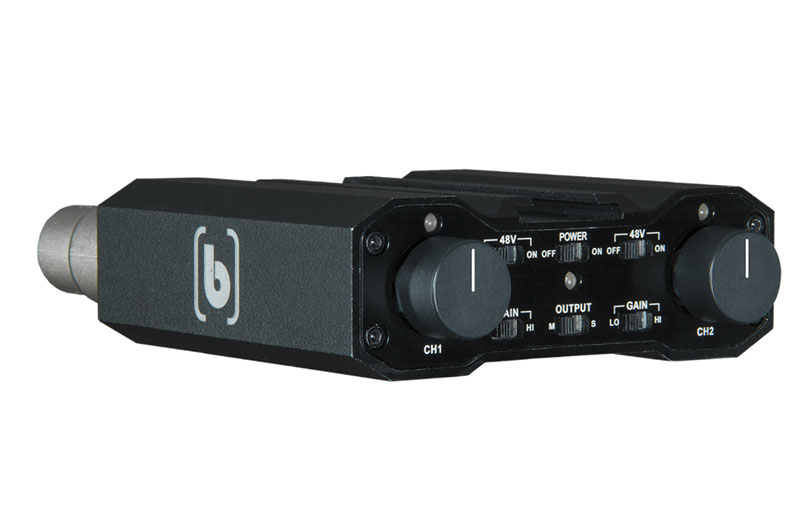

The BeachTek DXA-RED gives RED DSMC2 cameras two XLR inputs through a compact low-noise preamplifier with phantom power.

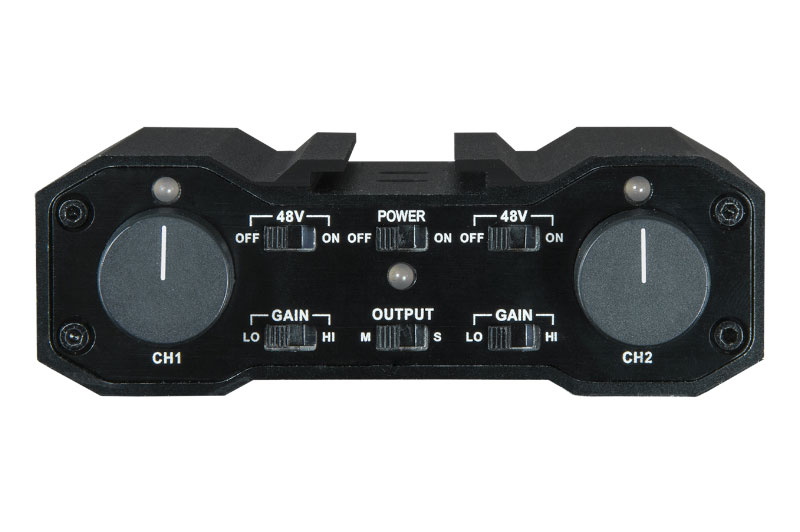

It has two gain settings and Good/Over LED level indicators, and its preamps give 94 dB of dynamic range. Main and aux 3.5 mm outputs carry the signal out. With a single mono mic, audio bracketing records a backup channel at a lower level, a safety track in case the main channel distorts from a hot input.
The DXA-RED runs from a 2-pin LEMO jack at 5 to 18 V or a Micro USB jack at 5 V. It has mounting shoes, and the included V-CLIK quick release plate snaps it on or off a rig.
It also works with the ARRI ALEXA Mini through the BeachTek BT-RED2ALX cable, the ALEXA Mini LF through the BT-RED2LF, and any DSLR camera with a mic jack through the included SC35 cable.
Features
- Two XLR inputs with phantom power
- Low-noise preamplifier with two gain settings
- Good/Over LED level indicators
- Main and aux 3.5 mm outputs
- Audio bracketing for a backup channel
- Power from a 2-pin LEMO or Micro USB jack
- Mounting shoes and a quick release mount
- V-CLIK quick release plate and SC35 cable included
What's Included
- DXA-RED preamplifier
- V-CLIK quick release plate
- SC35 3.5 mm to 3.5 mm output cable
Specifications
| Inputs | 2 × XLR |
|---|---|
| Outputs | Main and aux 3.5 mm |
| Maximum input level | −20 dBu (LO gain), −40 dBu (HI gain) |
| Frequency response | 20 Hz – 20 kHz (±0.5 dB) |
| THD + N | 0.01% (LO gain), 0.09% (HI gain), +4 dBu output, 1 kHz |
| Gain | Main out: 40 dB (LO), 60 dB (HI); aux out: 20 dB (LO), 40 dB (HI) |
| Dynamic range | 94 dB |
| Channel separation | 80 dB (LO gain), 68 dB (HI gain), +4 dBu output, 1 kHz |
| Level indicators | Green −40 dBu to −4 dBu; red over −4 dBu |
| Output clipping level | Main out +20 dBu; aux out 0 dBu |
| Power | 2-pin 0B LEMO jack, 5–18 V, 120 mA (pin 1 −, pin 2 +); or Micro USB jack, 5 V, 800 mA |
| Dimensions (L × W × H) | 3.3 × 3.0 × 1.1 in (83.6 × 75 × 28 mm) |
