Audio Workbench Switch Cup

The Audio Workbench Switch Cup holds two batteries and feeds four Hirose outputs, with a TA4 power supply input that takes priority over the batteries.

Running two batteries at once extends runtime and adds redundancy. Either battery can be changed while the other keeps the system powered, so a swap does not interrupt the rig.

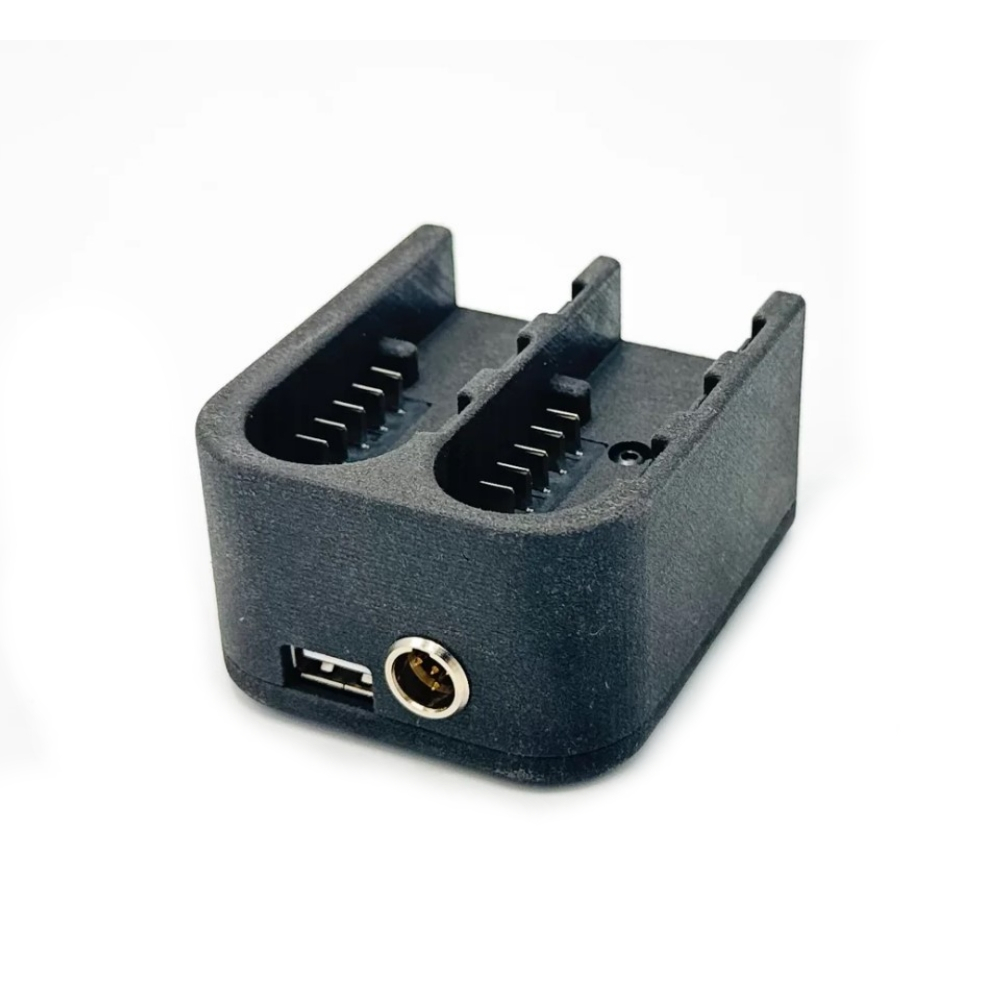

With a power supply in the TA4 input, the cup draws from the supply first, which reduces battery use. If the supply comes unplugged, power switches to the batteries.

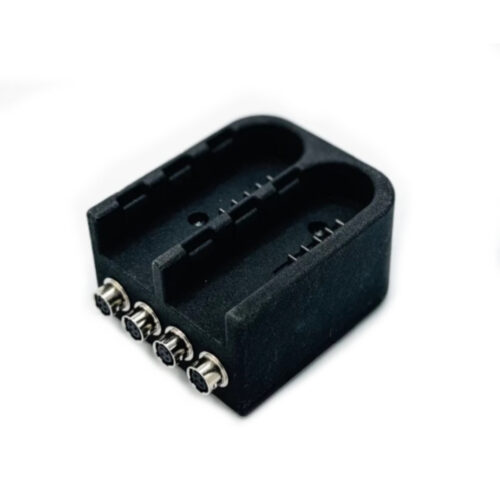

The Hirose outputs are compact locking connectors, each with a 2 A resettable fuse and its own voltage protection, and reverse voltage protection guards against damage. A USB charging output delivers 2.5 A with ultra-low RF spray to keep interference down.

The housing is solid nylon. The cup works with smart battery data, so it can communicate with the batteries and monitor them. Order it as the cup alone or with a Mean Well TA4 power supply.

Features

• Two batteries at once, with hot swap
• Four locking Hirose outputs
• TA4 power supply input with priority over the batteries
• Switches to battery power if the supply is unplugged
• 2.5 A USB charging output with ultra-low RF spray
• 2 A resettable fuse and voltage protection on each output
• Reverse voltage protection
• Smart battery data compatibility
• Solid nylon housing, made in Canada

Available Options
