Sound Devices A10-RX Two-Channel Receiver
- Two-channel digital wireless receiver
- Advanced Digital Diversity with four RF receivers
- Analog or AES3 output; slot-in or stand-alone
Product Discontinued: Limited Quantity Available While Supplies Last
From $2,695.00 USD
Product Discontinued: Limited Quantity Available While Supplies Last
Sound Devices A10-RX Two-Channel Receiver

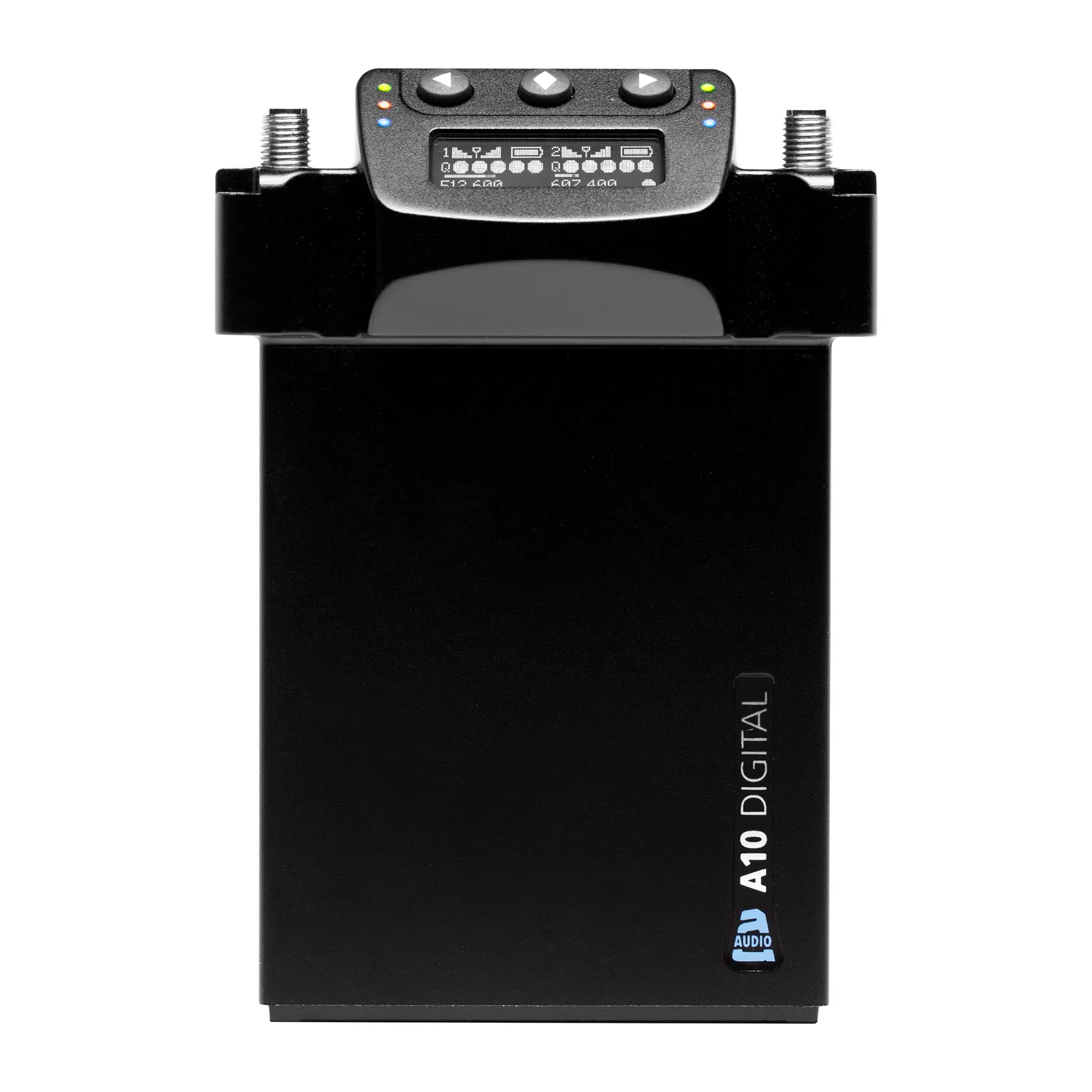

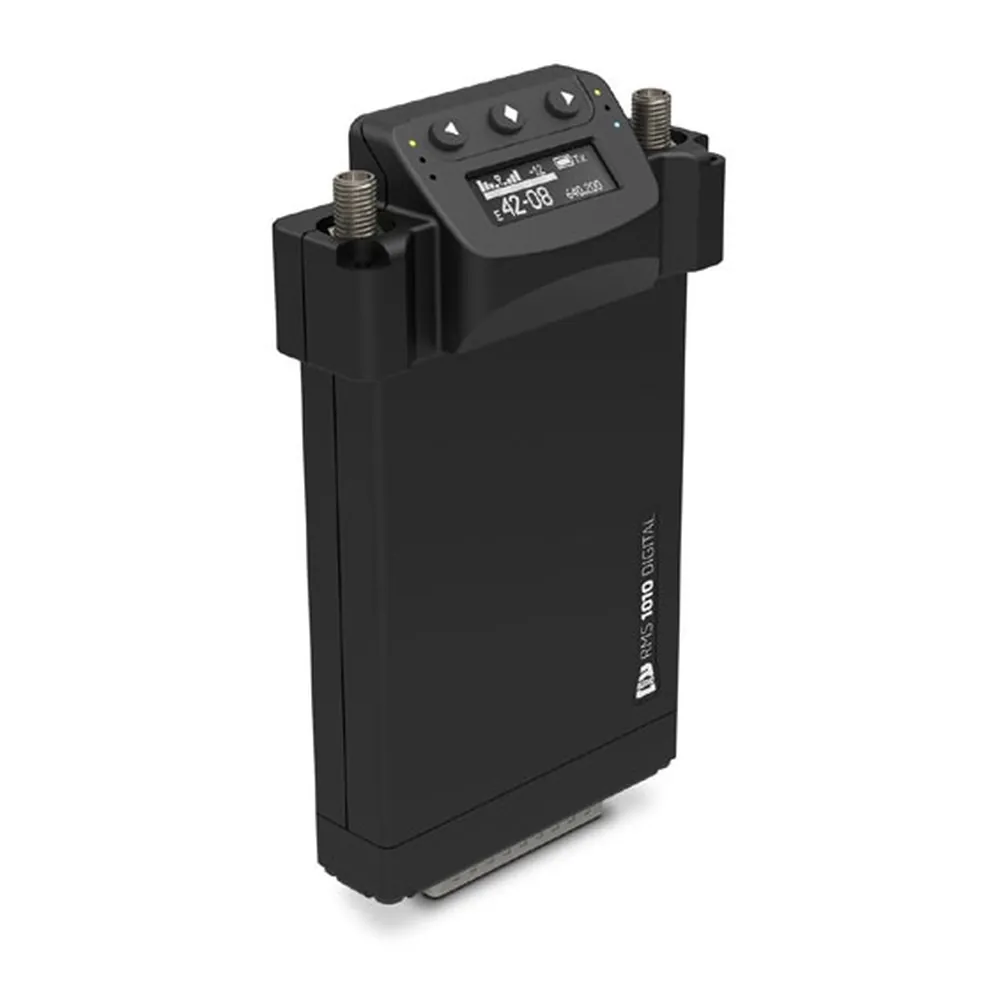

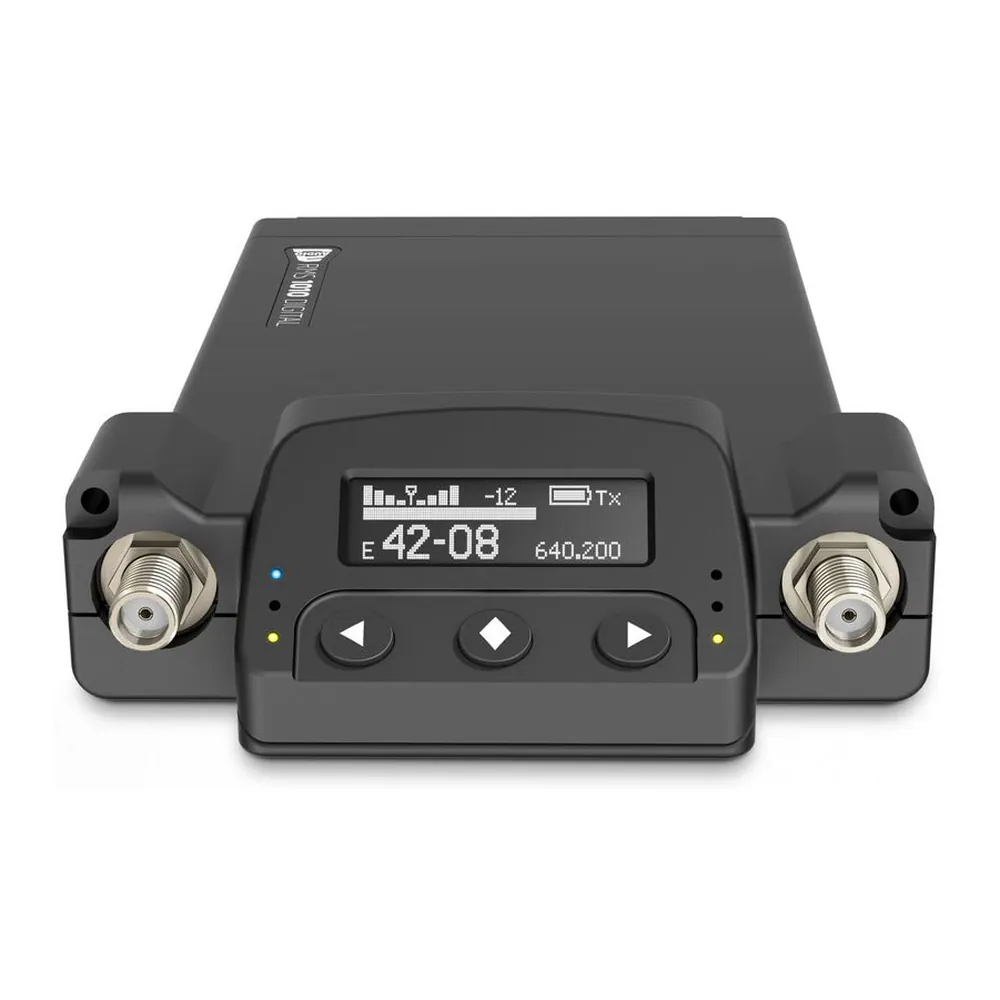

The Sound Devices A10-RX is a two-channel digital wireless receiver for one or two A10-TX or A20-Mini transmitters, with two complete RF receivers on each channel.
This design is Sound Devices’ Advanced Digital Diversity topology. Audio runs 20 Hz to 20 kHz with 2 ms of latency in Standard modulation, or 3.9 ms in the Long Range mode, which extends transmission distance.
Outputs and Mounting

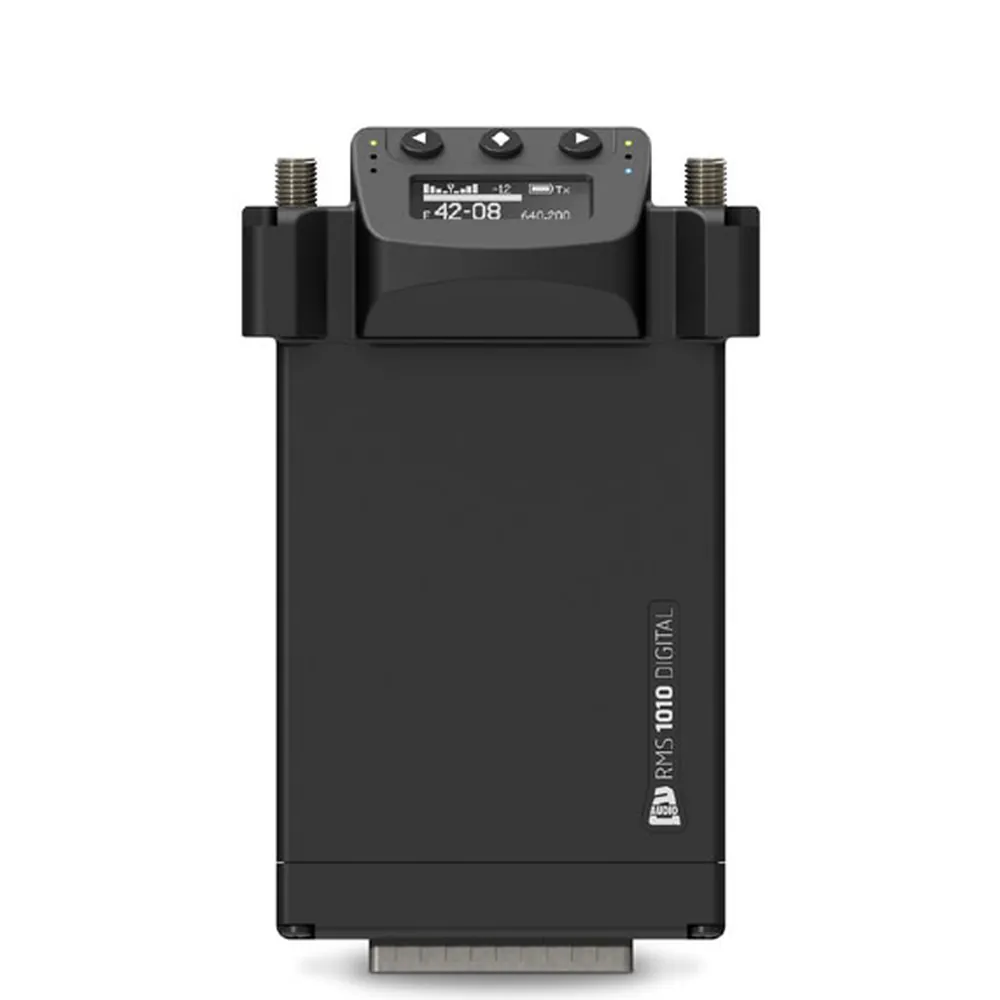

Each channel outputs analog line level or AES3 digital audio. This version is the A10-RX-SL, which slots into a Uni slot or SuperSlot through a 25-pin D-type connector. Swapping its A-SL adapter for the A-XLR adapter makes it a stand-alone receiver with XLR outputs and Hirose power.
With the A-15PIN adapter it fits select Sony camcorders, passing two channels of digital audio inside the camera with no external cables.
Good to Know
The US model tunes from 470 to 608 MHz in 25 kHz steps. It runs on 6 to 18 VDC, drawing about 3 W with one receiver active and 4.4 W with two.
Features
- Two channels, two RF receivers per channel
- Advanced Digital Diversity topology
- Standard or Long Range digital modulation
- Analog line-level or AES3 digital output
- Uni slot or SuperSlot mounting, convertible with the A-XLR
- Works with A10-TX and A20-Mini transmitters
Manuals & Docs
Specifications
| RF and Audio | |
|---|---|
| Frequency Range | US models: 470 to 608 MHz World models: 470 to 694 MHz |
| Tuning Steps | 25 kHz |
| Modulation | Proprietary digital RF, Standard or Long Range, selectable |
| Latency | Standard: 2 ms Long Range: 3.9 ms (at the analog output) |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Maximum Output Level | +14 dBu, +2 dBu, −10 dBu, or −22 dBu, menu-selectable, 130 ohms |
| Digital Audio Output | AES3 balanced, 110 ohms; left = channel 1, right = channel 2 |
| Privacy | User-settable 4-digit PIN |
| Power and Physical | |
| Powering | 6 to 18 VDC; about 3 W with one receiver active, 4.4 W with two |
| Operating Temperature | −10 °C to +55 °C |
| Dimensions | 124 × 68 × 18 mm |
| Weight | 207 g |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit sounddevices.com. |
