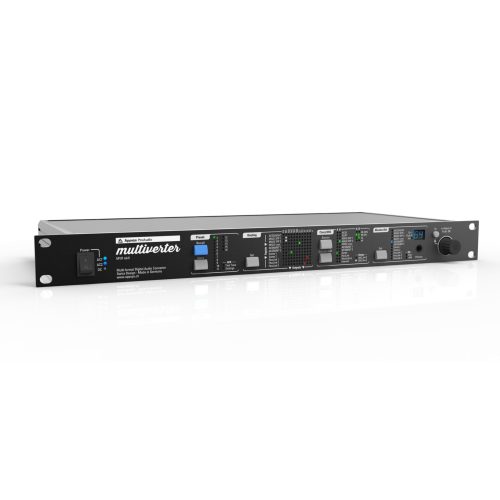

Appsys MVR-mkII Multiverter

Appsys MVR-mkII Multiverter — This unique piece of hardware is able to convert between many different digital audio interfaces–any to any, all at once. It’s fully packed with features like channel-wise-routing, web interface, sample rate conversion, headamp remote control, and much more. For users of the MVR-64 (old model): All firmware features of the new model will also be back-ported as long as the hardware allows it.

With the Multiverter, you can:

• Interface your recording gear to any signal source
• Make your production truck or OB van compatible to any incoming signal and clock
• Sample-rate convert between any interfaces using the SRC-64 plugin module
• Dante<>Dante bridging of different networks with optional sample rate conversion (up to 64ch 96k <> 48k bidirectional)
• Use your ethernet port as recording interface with the Dante® Virtual Soundcard technology
• Record from any source, and directly from MIDAS®/Behringer® stageboxes with remote headamp control
• Bring your legacy gear up to date

Appsys MVR-mkII Multiverter Features

• 704×704 channels routing matrix with channel-wise routing/splitting between interfaces
• Bi-directional sample rate conversion up to 128 channels using the SRC-64 plug-in module
• Fully remote-controllable via Web, Web-over-USB and command line (telnet/UART) Web Remote Demo
• Headamp remote control for MIDAS®/Behringer® stageboxes (Sxx/DLxx/DLxxx)
• Integrated headphone amp to monitor any incoming signal

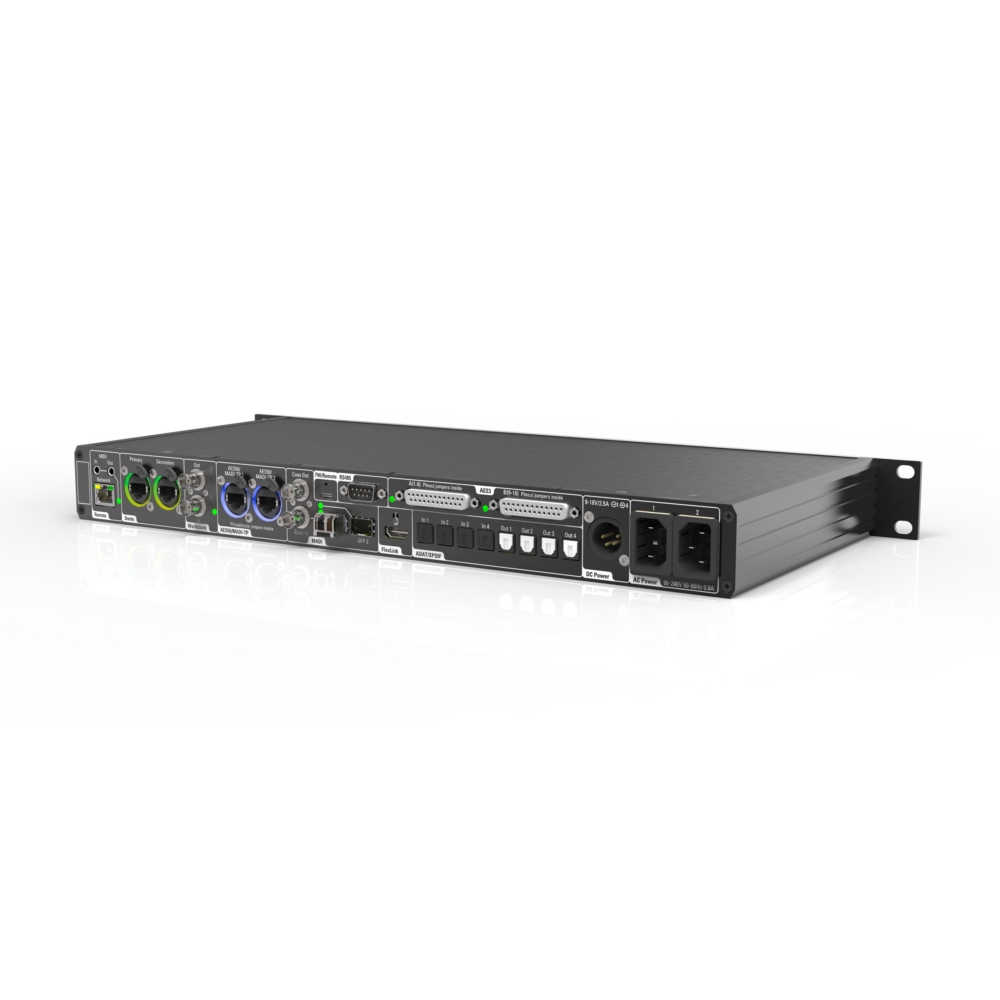

Audio Interfaces

• AES3 (16x16ch)
• ADAT (4x), SPDIF/AES3 optical
• MADI SFP (2x), supports Ferrofish SFP Coax
• MADI coaxial
• AES50 (up to 2 ports)
• MADI-TP (up to 2 ports)
• Dante
• Up to 192 extra channels via Flexiverter breakout boxes connected to the FlexLink port

Clocking Options

• Supports 44.1…192 kHz operation
• ClockShield™ technology allows clickless operation during up to 1s clock dropouts
• Optional Sample Rate Conversion

Other Notable Functions

• Preset store/recall (16 different setups)
• Jumperable pinout for AES3 (Tascam/Yamaha) and AES50/MADI-TP ports
• Test tone generator simplifies troubleshooting of complex setups
• Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
• Can be powered alone from industry standard 4-pin XLR plug battery packs
• Separate network control port
• MIDI and RS485 embedding/de-embedding from MIDI/RS485 jacks into MADI streams (RME™/DirectOut™-compatible)
• Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
