Ambient QuickPole Series 5 Boom Pole
- Five-section carbon fiber, six lengths up to 6.37 m
- Quarter-turn locks with anti-twist
- No cable, or an internal coiled or straight cable
From $544.00 USD
Ambient QuickPole Series 5 Boom Pole

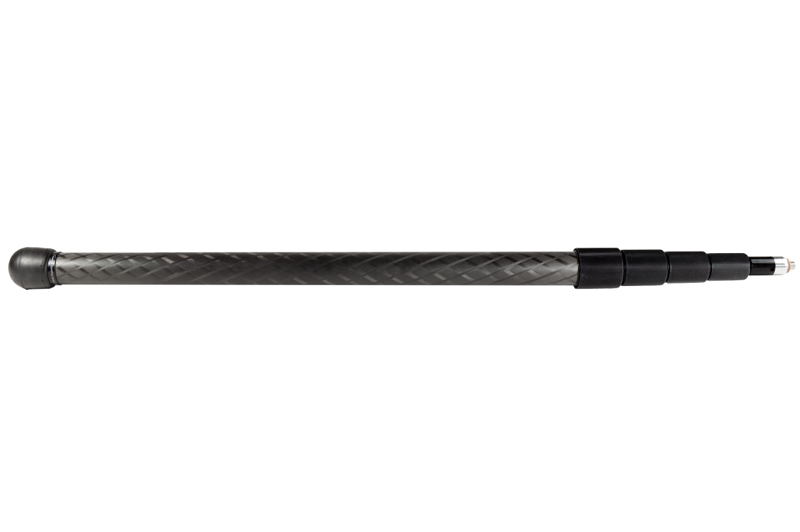

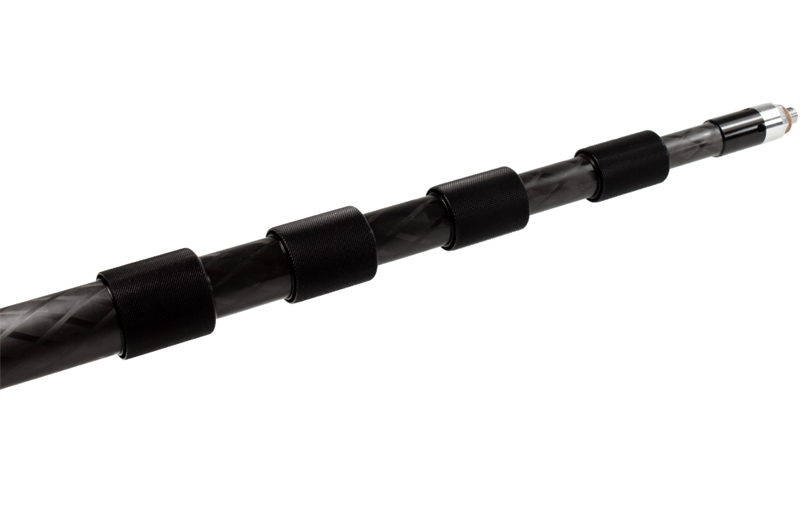

Made in six lengths, the Ambient QuickPole Series 5 is a five-section carbon fiber boom pole that extends as far as 6.37 m (20 ft 11 in).

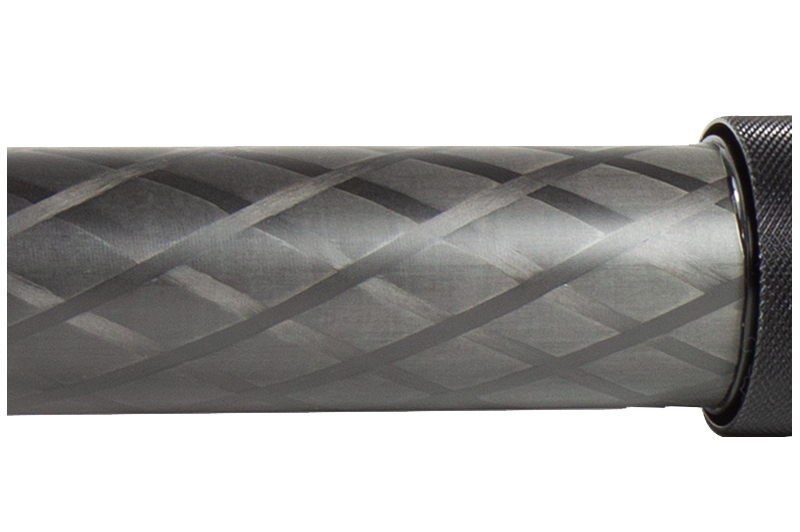

The shortest, the QP 550, extends to 1.85 m (6 ft 1 in), and the longest is the QP 5150. Ambient builds the tubes from their own carbon fiber compound with an added layer of ultra-high-modulus (UHM) fibers. The Series 5 is as sturdy as their four-section QP poles and lighter than their five-section QXS poles, and it stays steady at full extension, even with a heavy windshield on the end.
Locks and Handling

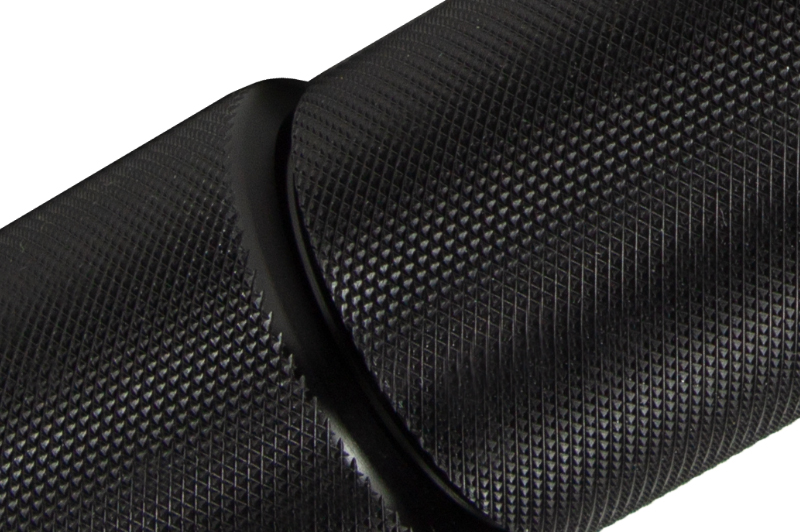

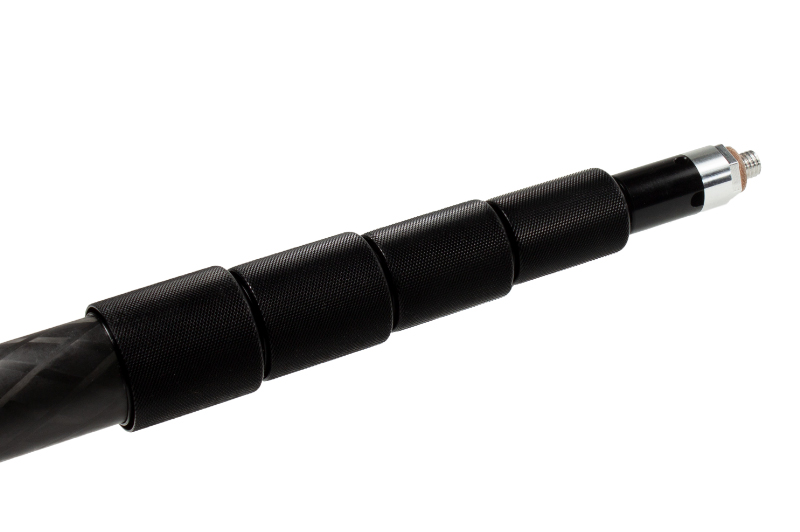

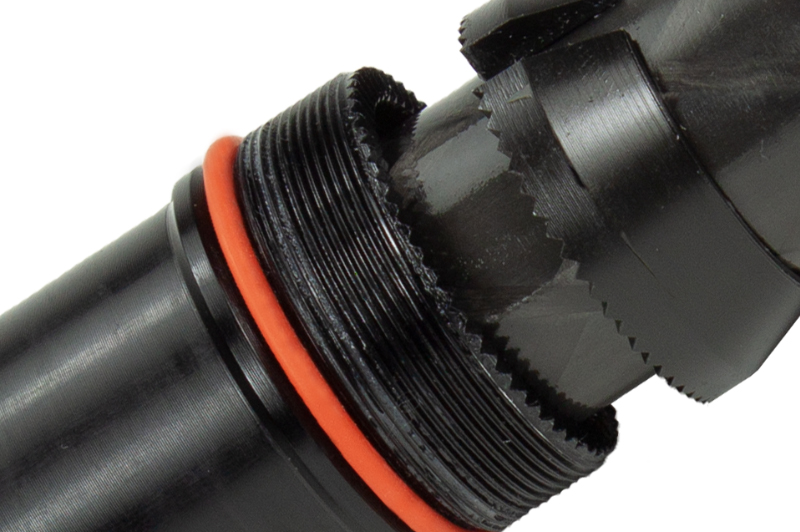

A quarter turn locks each section firmly and keeps the sections from twisting. Teflon, felt, and silicone lubricant let the tubes extend and collapse smoothly, and a section stays put even when its lock is loose. The long handle sleeves have a finely knurled grip. Poles shipped since May 2024 carry the improved locks first introduced on the QuickPole Slim.
Cable Options
Cabled versions have an internal coiled or straight cable, mono (XLR3) or stereo (XLR5), that exits through a side outlet in the end piece; the QP 5150 takes a straight cable only. A cable can be replaced or retrofitted without soldering: the tip comes off, the pre-assembled cable feeds through from the top, and it plugs into the end piece.
Features
- Five-section carbon fiber boom pole with a UHM fiber layer
- Six lengths, up to 6.37 m (20 ft 11 in) extended
- Quarter-turn locks that keep the sections from twisting
- Sections stay put when a lock is loose
- Teflon, felt, and silicone counter bearing
- Long, finely knurled handle sleeves

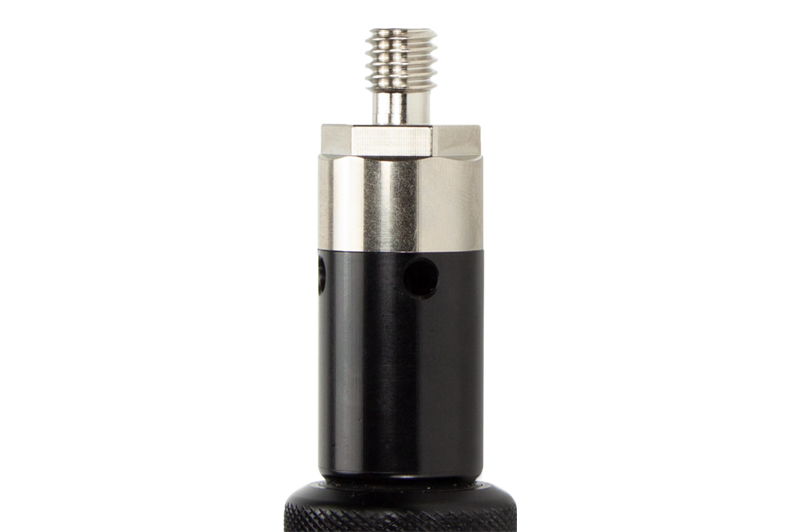

- 3/8 in thread at the tip
- Internal coiled or straight cable, mono or stereo, with side outlet
- Cable replacement without soldering
- Handmade in Germany, 2-year warranty
Available Options
| Model | Collapsed | Extended | Weight Without Cable | Cable |
|---|---|---|---|---|
| QP 550 | 550 mm (1 ft 10 in) | 1850 mm (6 ft 1 in) | 450 g (15.87 oz) | No Cable, Mono Coiled Cable |
| QP 565 | 690 mm (2 ft 3 in) | 2480 mm (8 ft 2 in) | 540 g (19.05 oz) | No Cable, Mono Coiled Cable |
| QP 580 | 840 mm (2 ft 9 in) | 3120 mm (10 ft 3 in) | 636 g (22.43 oz) | No Cable, Mono Coiled Cable |
| QP 5100 | 1040 mm (3 ft 5 in) | 4020 mm (13 ft 2 in) | 760 g (26.81 oz) | No Cable, Mono Coiled Cable, Mono Straight Cable, Stereo Coiled Cable |
| QP 5130 | 1340 mm (4 ft 5 in) | 5320 mm (17 ft 5 in) | 950 g (33.51 oz) | No Cable, Mono Coiled Cable |
| QP 5150 | 1550 mm (5 ft 1 in) | 6370 mm (20 ft 11 in) | 1080 g (38.10 oz) | No Cable, Mono Straight Cable |
Specifications
| Uncabled Poles | |
|---|---|
| QP550 | 550 to 1850 mm (1 ft 10 in to 6 ft 1 in), 450 g (15.87 oz) |
| QP565 | 690 to 2480 mm (2 ft 3 in to 8 ft 2 in), 540 g (19.05 oz) |
| QP580 | 840 to 3120 mm (2 ft 9 in to 10 ft 3 in), 636 g (22.43 oz) |
| QP5100 | 1040 to 4020 mm (3 ft 5 in to 13 ft 2 in), 760 g (26.81 oz) |
| QP5130 | 1340 to 5320 mm (4 ft 5 in to 17 ft 5 in), 950 g (33.51 oz) |
| QP5150 | 1550 to 6370 mm (5 ft 1 in to 20 ft 11 in), 1080 g (38.10 oz) |
| Measured With | Tip and rubber bumper |
| Cabled Poles | |
| QP550 | 630 to 1930 mm (2 ft 1 in to 6 ft 4 in), 700 g (24.69 oz) |
| QP565 | 770 to 2560 mm (2 ft 6 in to 8 ft 5 in), 800 g (28.22 oz) |
| QP580 | 920 to 3200 mm (3 ft 0 in to 10 ft 6 in), 910 g (32.10 oz) |
| QP5100 | 1120 to 4100 mm (3 ft 8 in to 13 ft 5 in), 1060 g (37.39 oz) |
| QP5130 | 1420 to 5400 mm (4 ft 8 in to 17 ft 9 in), 1290 g (45.50 oz) |
| QP5150 | 1630 to 6450 mm (5 ft 4 in to 21 ft 2 in), 1400 g (49.38 oz) |
| Measured With | Tip, internal cable, and end piece |
| Construction | |
| Sections | 5 |
| Material | Carbon fiber compound with an added layer of UHM fibers |

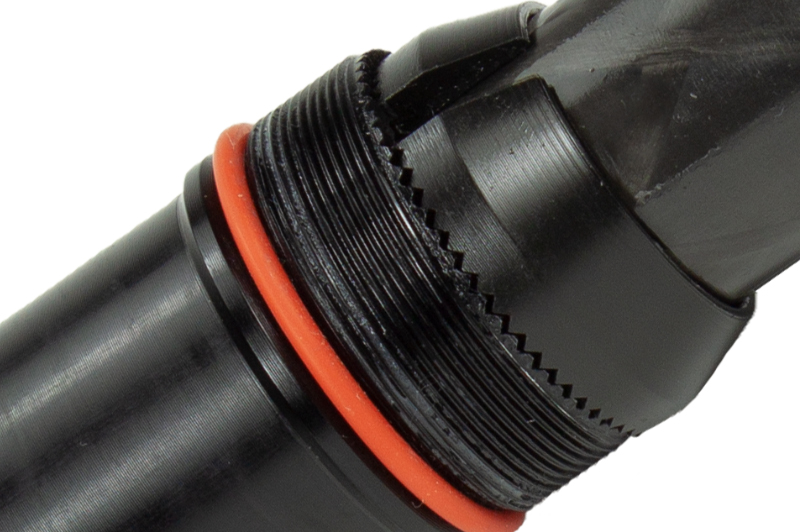

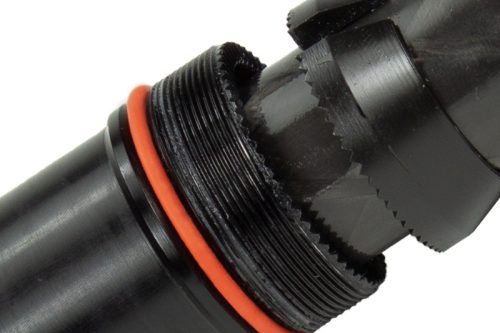

| Locks | Quarter turn, Hirth serration anti-twist |
| Tip Thread | 3/8 in |
| Internal Cable | Coiled or straight; XLR3 mono or XLR5 stereo; side outlet |
| Warranty | 2 years |
| Latest Specifications | Specifications are subject to change without prior notice. For current information, visit ambient.de. |
Size Chart
| Type | Length collapsed mm (in) | Length extended mm (in) | Weight g (oz) |
| QP550 | 550 (21.65) | 1850 (72.83) | 450 (15.87) |
| QP565 | 690 (27.17) | 2480 (97.64) | 540 (19.05) |
| QP580 | 840 (22.83) | 3120 (122.83) | 636 (22.43) |
| QP5100 | 1040 (40.94) | 4020 (158.27) | 760 (26.81) |
| QP5130 | 1340 (52.76) | 5320 (209.45) | 950 (33.51) |
| QP5150 | 1550 (61.02) | 6370 (250.79) | 1080 (38.10) |
