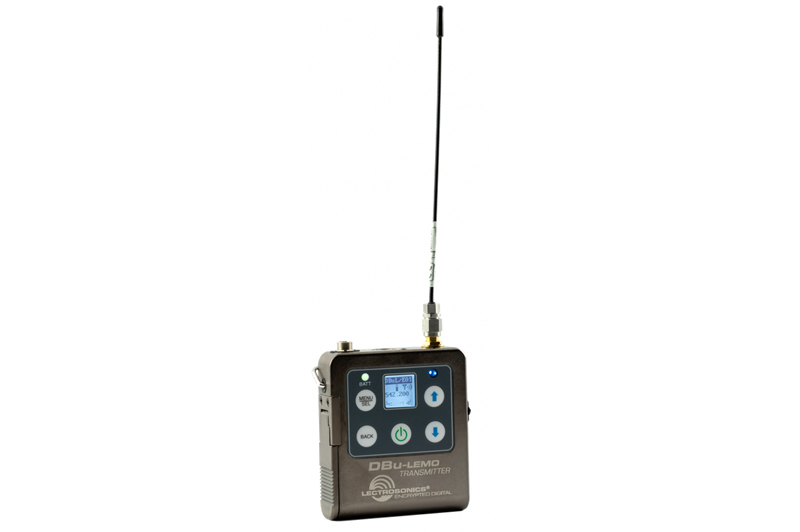

Lectrosonics DBu-Lemo Belt-Pack Transmitter – B stock

1,625.00 USD

Digital Belt Pack Transmitter with Lemo input.

Unavailable for shipping outside of The United States and Canada.

Condition: Mint


Item Ref # 246313
Location:Los Angeles (323) 876-7525
Freq:

Buy Now For $1625

Want more info about an item? Give us a call, or contact us at [email protected]

SKU: LEC.DBULemo-1 Categories: , Tags: ,

Description

Full Factory warranty



Specifications

Operating Frequencies: 470.100 – 607.950 MHz
Frequency Selection Steps: 25 kHz
RF Power output: Selectable; 25 or 50 mW
Frequency Stability: ± 0.002%
Digital Modulation: 8PSK
Equivalent input noise: –128 dBV
Input level:
  • Nominal 2 mV to 300 mV, before limiting
  • Greater than 1V maximum, with limiting.
Input impedance:
Mic: 300 Ohm
Line: 2k Ohm
Input limiter: Dual envelope type; 30 dB range
Gain control range: 44 dB in 1 dB steps; digital control
Modulation indicators:
  • Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation
  • LCD bar graph
Controls:
  • Top panel toggle switch; programmable as power, mute or none (off) function
  • Side panel membrane switches with LCD interface for power on/off and all setup and configuration controls
Audio Input Jack: Switchcraft 5-pin locking (TA5F)
Antenna: Galvanized steel, flexible wire
Battery: Two AA Duracell Quantum recommended
Battery Life: 5 hours; Duracell Quantum alkaline
Weight: 6.24 ounces (177 grams), including two AA batteries and wire belt clip
Dimensions: 3.2 x 2.5 x .74 in. (86 x 62 x 19 mm)
Emission Designator: 200KG1E
